FS-H-1030A 1030 nm All Fiber Femtosecond Pulsed Laser
$1,000,000.00
Description: All Fiber Femtosecond pulsed laser at 1030nm is made features of short pulse duration, high repetition rate, high stability and good beam quality, which is used in optical microscope, photon imaging, physics experiment, etc.
Applications: optical microscope, photon imaging, physics experiment
Model #: FS-H-1030A
| Model | FS-H-1030A |
| Wavelength (nm) | 1030±10 |
| Operating Mode | Pulsed |
| Average Power (mW)¹ | 1-500 |
| Single Pulse Energy (nJ) | 1-6.25 |
| Repetition Rate (MHz)² | 80±2 |
| Pulse Duration (fs) | <150 |
| Peak Power (kW) | 41.7 |
| Average Power Stability (rms, 4 hours ±3℃) | <2%, <1% |
| Warm-Up Time (minutes) | <10 |
| Transverse Mode | TEM00 |
| M² | <1.2 |
| Beam Divergence, Full Angle (mrad) | <1 |
| Polarization Ratio | >100:1 |
| Cooled Method | Air cooled |
| Operating Temperature (℃) | 10-35 |

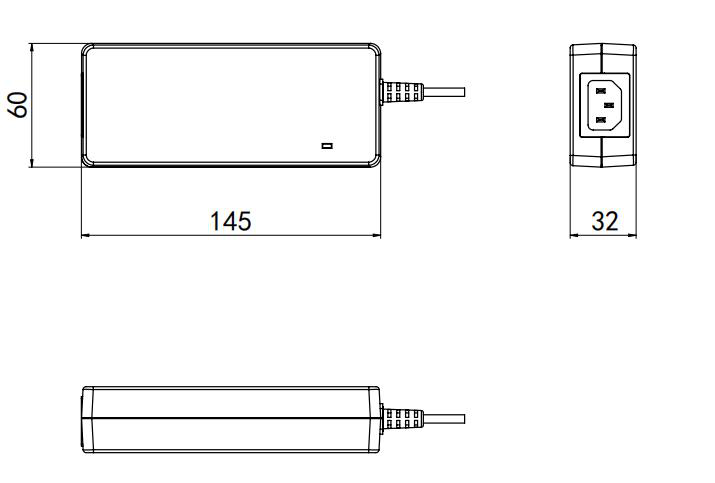

| Power Supply (100-240VAC) | PSU-H-FDA |
| Expected Lifetime (hours) | >10000 |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # FS-H-1030A
Please request a quotation for a real price and lead time.
