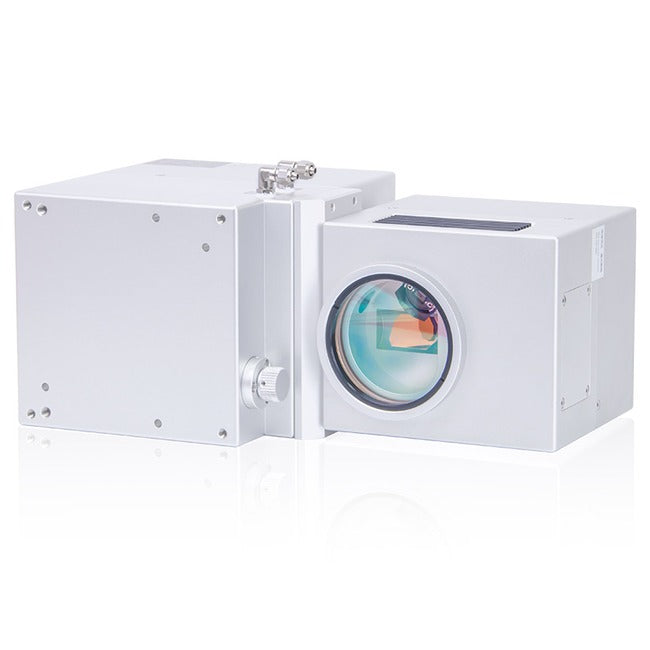

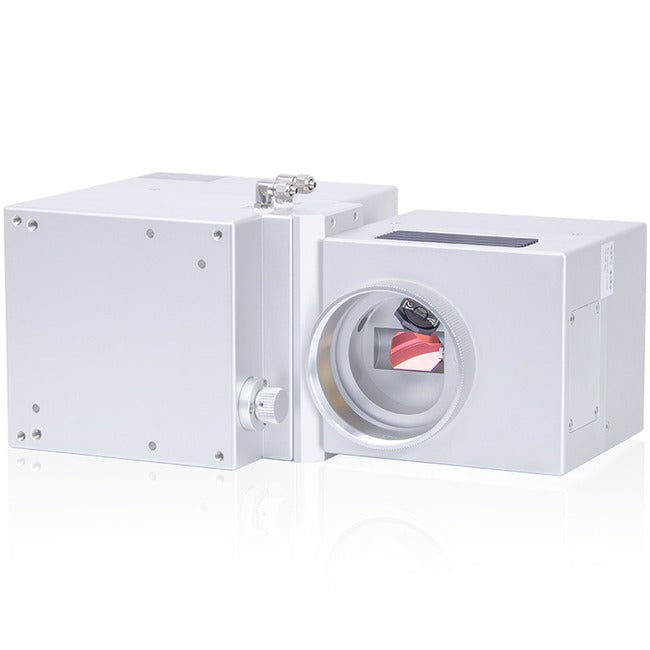

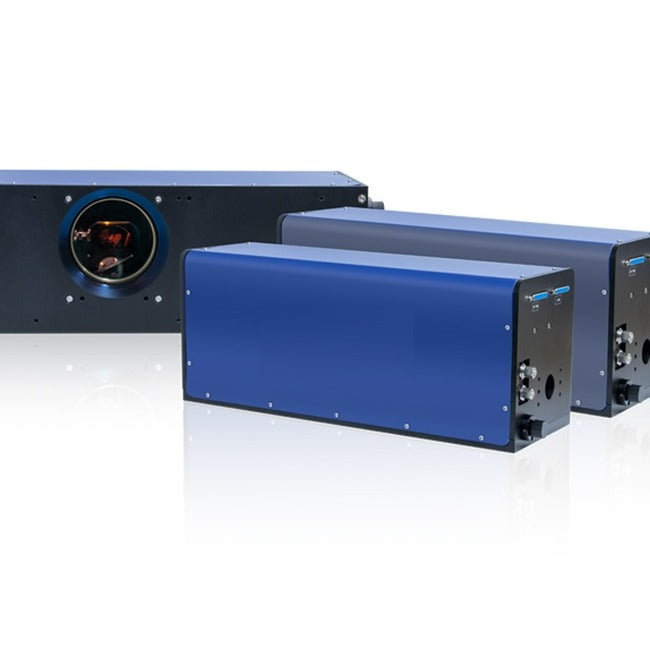

The High Speed 3D & 2.5D Scanning System combines a 14 mm 2D galvanometer with a VCM-Z dynamic focusing module, giving X, Y and Z axes that respond in step for high-speed 3D processing. The focusing axis keeps the spot on the workpiece as the working plane changes, so the system handles what a conventional plane scanner cannot: dynamic-zoom processing. It is used for glass drilling, 3D curved marking, welding, laser digging grooves and step-surface marking. Green, UV, infrared and CO₂ configurations are available, and the 14 mm UltraScan or ExtraScan galvanometers can be specified instead according to the accuracy and speed required.

Key Features:

  • Using 14mm 2D galvanometer and VCM-Z reflection z-axis focusing system, X, Y, Z-axis dynamic response perfectly matching, realizing high-speed 3D processing
  • UV, green and infrared three bands available
  • High speed glass drilling applications with front focusing field mirror
  • Optional 14mm UltraScan and Extrascan galvanometers are available according to customer's different accuracy and speed requirements

Specifications of High Speed 3D & 2.5D Scanning System 14 mm

Parameter Specifications
Product High Speed 3D & 2.5D Scanning System 14 mm
Type Three-axis scan system: 14 mm 2D galvo + VCM-Z dynamic focusing module
Scan Head 14 mm 2D galvanometer (UltraScan or ExtraScan optional)
Focusing Axis VCM-Z reflective dynamic focusing module
Bands Green, UV, infrared and CO₂ configurations
Typical Applications Glass drilling, 3D curved marking, welding, laser digging groove, step surface marking
Laser Type Green UV Laser IR CO₂
Wavelength (nm) 532 355 1064 10600
Coating Anti-reflective Film Anti-reflective Film Anti-reflective Film Anti-reflective Film
Aperture of 2D Scan Head (mm) Φ14 Φ14 Φ14 Φ14
Input Beam Aperture of Z-axis Module (mm) Φ3.5 Φ9 Φ7 Φ3.5
Field Size (mm) 70 × 70 210 × 210 210 × 210 175 × 175
Z-axis Focusing Range (mm) ±5 ±15 ±20 ±20
F-theta Lens Working Distance (mm) 93.03 330 330 242.8
Focal Spot Diameter, M² = 1 (mm) 0.01 15.3 45 351.9

Configuration Example (Infrared, 14 mm)

Field Size (mm × mm × mm) 1/e² Focal Spot Diameter (µm) Working Distance (mm)
200 × 200 × 40 45.2 177.4
250 × 250 × 60 52.1 239.3
300 × 300 × 80 60.7 301.2
350 × 350 × 100 70 363
400 × 400 × 120 79.3 425
Galvo Parameters Value
Scan Angle (°) ±22
Repeatability (µrad) 5
Max. Gain Drift (ppm/K) 12
Long-term Drift Over 8 h (mrad) 0.3
Max. Offset Drift (µrad/K) 30
Maximum Processing Speed (characters/s) 650
Small Step Response Time (ms) ≤ 0.35
Dynamic Focus System Parameters Value
Small Step Response Time (ms) ≤ 1.6
Environmental Requirements Value
Operating Temperature (°C) 0 ~ +40
Storage Temperature (°C) -10 ~ +60
Humidity 75 %, no condensation
Power Supply Parameter Value
Power Requirements ±(15 + 1.5) VDC, max. 10 A
Structure Parameters Value
Weight (kg) 8
Dimensions (mm) 324 × 140 × 181.5

Data Sheet: High Speed 3D & 2.5D Scanning System 14 mm (PDF)

Green, UV, infrared and CO₂ configurations; 14 mm UltraScan or ExtraScan galvanometers optional. Tell us your laser, field size and working distance and we will quote the right configuration.
