HPL-1064A-PA 1064 nm Water Cooling LD Pumped All-Solid-State Q-Switched Laser
$1,000,000.00
Description: All solid state Q-switched laser at 1064 nm with high peak power, high repetition rate and short pulse duration.
Applications: marking, carving, measurement, scientific research, and so on
Model #: HPL-1064A-PA
| Wavelength (nm) | 1064±1 |
| Operating Mode | Actively |
| Pulse Duration (ns) | ~10 |
| Average Power (W) | 1-4 |
| Single Pulse Energy (mJ) | 5-20 |
| Rep. Rate (Hz) | 200 |
| Peak Power (MW) | 0.5-2 |
| Power Stability (rms, 4 hours ± 3°C) | <5%, <3% |
| Beam Divergence, Full Angle (mrad) | <2 |
| Beam Diameter at the Aperture (1/e2, mm) | ~4 |

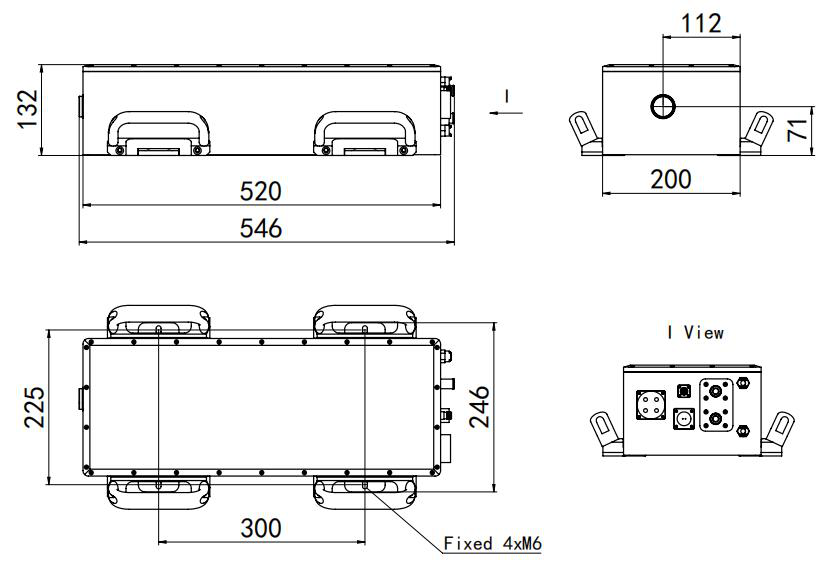

| Beam Height from Base Plate (mm) | 71 |
| Warm-up Time (minutes) | <10 |
| Cooled Method | Water cooled |
| Operating Temperature (℃) | 15-35 |
| Power Supply (220 VAC) | PSU-HPL-PA |
| Expected Lifetime (hours) | >10000 |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # HPL-1064A-PA
Please request a quotation for a real price and lead time.
