360 nm LD Pumped All-Solid-Sate Electric-optic Q-switched Pulsed Laser HPL-360-T
$1,000,000.00
Description: All solid state Q-switched laser has the features of high peak power, high repetition rate, and short pulse duration.
Applications: marking, carving, measure, scientific research
Model #: HPL-360-T
| Model | HPL-360-T |
| Wavelength | 360 nm |
| Operation Mode | Pulsed (Q-switched) |
| Average Power | 500 mW |
| Single Pulse Energy | 50 µJ |
| Repetition Rate | 1-10 kHz |
| Pulse Duration | <25 ns |
| Peak Power | 2 kW |
| Power Stability | <5%, <3% |
| Beam Divergence, Full Angle | <2 mrad |
| Beam Diameter at the Aperture | <3 mm |
| M² | <1.5 |
| Beam Height from Base Plate | 73 mm |
| Cooling Method | Water cooled |
| Operating Temperature | 15 ~ 35 ℃ |

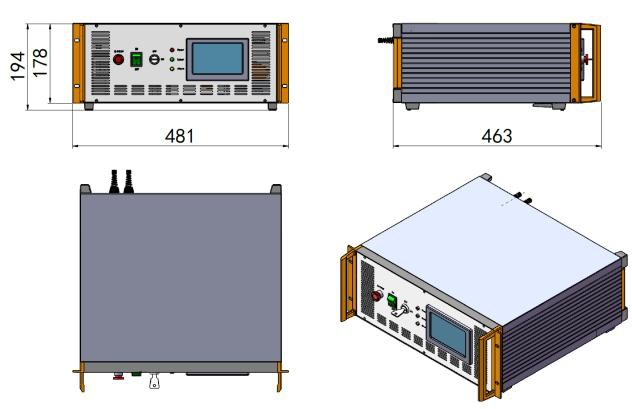

| Power Supply (220/110VAC) | PSU-AOM (4U) |
| Expected Lifetime | >10000 hours |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # HPL-360-T
Please request a quotation for a real price and lead time.
