HPL-556-Q 556 nm Water Cooling LD Pumped All-Solid-State Q-Switched Yellow Laser
$1,000,000.00
Description: All solid state Q-switched yellow laser at 556nm has the features of high power, high repetition rate, and short pulse duration.
Applications: communication, laser medical treatment, scientific experiment, optical instrument
Model #: HPL-556-Q
| Model | HPL-556-Q |
| Wavelength (nm) | 556±1 |
| Operating Mode | Actively Q-switched |
| Average Power (W) | 20-50 |
| Repetition Rate (kHz) | 10-20 |
| Pulse Duration (ns)¹ | ~100 |
| Single Pulse Energy (mJ) | 2-5 |
| Peak Power (kW) | 20-50 |
| Power Stability (rms, 4 hours ±3°C) | <5%, <3% |
| Beam Divergence, Full Angle (mrad) | <3.5 |
| Beam Diameter at the Aperture (1/e², mm) | <12 |
| Beam Height from Base Plate (mm) | 64 |
| Warm-Up Time (minutes) | <10 |

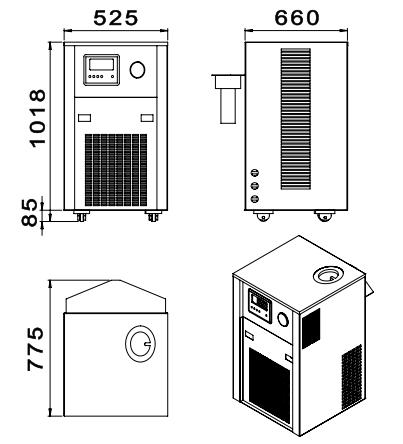

| Cooled Method | Water cooled |
| Operating Temperature (℃) | 15-35 |

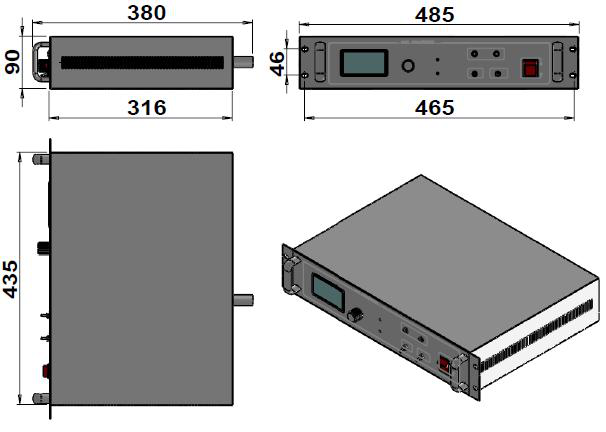

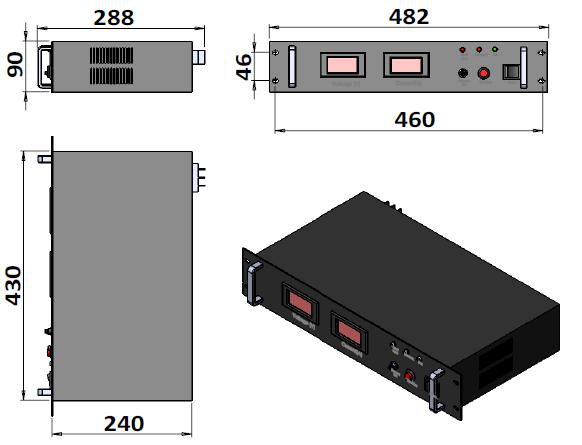

| Power Supply (220-240VAC) | PSU-HPL-Q & PSU-HPL-CW |
| Expected Lifetime (hours) | >10000 |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # HPL-556-Q
Please request a quotation for a real price and lead time.
