HPL-589-Q 589 nm Water Cooling LD Pumped All-Solid-State Q-Switched Yellow Laser
$1,000,000.00
Description: All solid state AOM Q-switched laser at 589nm has the features of high peak power, high repetition rate, and short pulse duration, which is widely used in measurement, research, City view, and so on.
Applications: measurement, research, city view
Model #: HPL-589-Q
| Wavelength (nm) | 589±1 |
| Operating Mode | Actively Q-switched |
| Average Power (W) | 1-25 / 25-50 |
| Repetition Rate | 10kHz |
| Pulse Duration (ns) | 150±50 |
| Power Stability (rms) | <3%, <2% / <3%, <2%, <1% |
| Beam Divergence, Full Angle (mrad) | <3 |
| Beam Diameter at the Aperture (mm) | ~18 |
| Warm-up Time (minutes) | <15 |
| Beam Height from Base Plate (mm) | 90 / 110 |

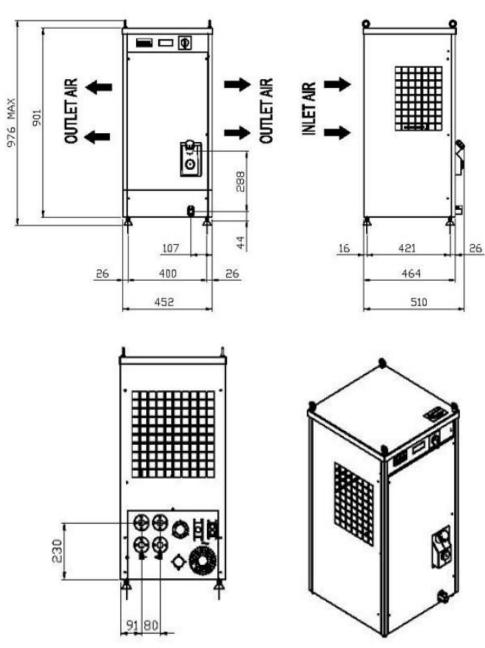

| Cooling Method | Water cooled |
| Operating Temperature (℃) | 15-35 |

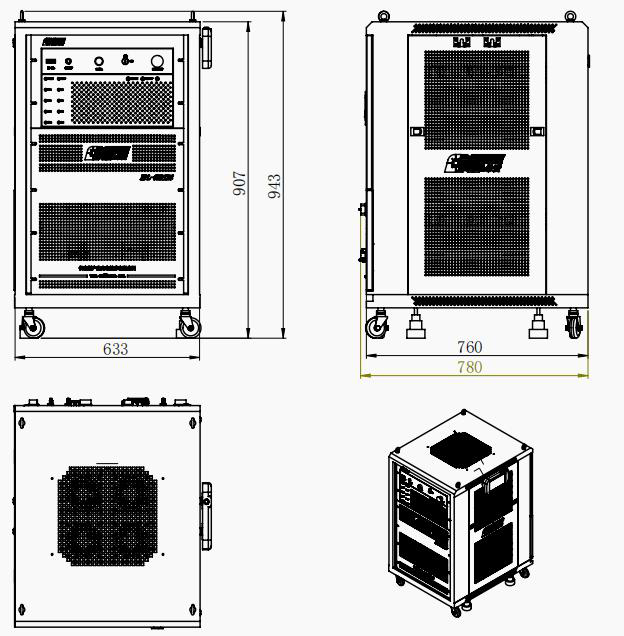

| Power Supply (110/220VAC) | PSU-HPL-Q-I / PSU-HPL-Q-II |
| Expected Lifetime (hours) | >10000 |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # HPL-589-Q
Please request a quotation for a real price and lead time.
