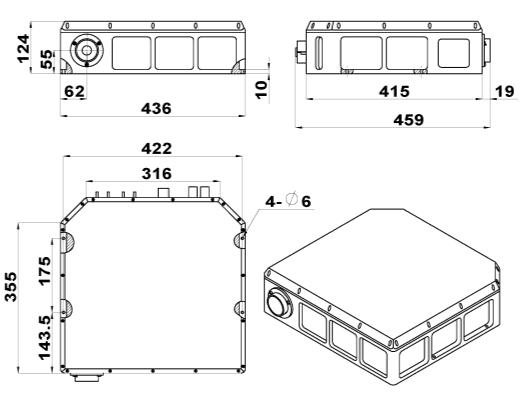

HPL-660-QM 660 nm High Power Q-Switched Red Laser
$1,000,000.00
Description: All solid state AOM Q-switched laser at 660nm, featuring high peak power, high repetition rate and excellent beam quality, is widely used in scientific research, material processing, laser lighting show, etc.
Applications: scientific research, material processing, laser lighting show
Model #: HPL-660-QM
| Wavelength (nm) | 660±1 |
| Operating Mode | Q-switched: AOM (Acousto-Optic Modulation) |
| Average Power (W) | >100 |
| Pulse Duration (ns) | ~150 @10kHz |
| Rep. Rate (kHz) | 10~20 (customizable) |
| Single Pulse Energy (mJ) | >10 @10kHz |
| Peak Power (kW) | >65 @10kHz |
| Average Power Stability (over 4 hours) | <3% or 5% |
| Beam Divergence, Full Angle (mrad) | <3.5 |
| Beam Diameter at Aperture (mm) | ≥15 |
| Beam Height from Base Plate (mm) | 55 |
| Warm-up Time (minutes) | <10 |
| Cooling Method | Water Cooled |
| Operating Temperature (℃) | 15~35 |

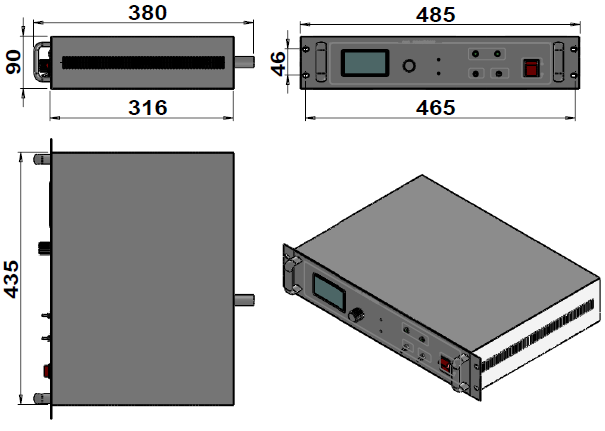

| Power Supply (220/110VAC) | PSU-HPL (2U×4) |
| Expected Lifetime (hours) | 10000 |
| Warranty Period | 1 year |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # HPL-660-QM
Please request a quotation for a real price and lead time.
