LGS-589.159-PS 589.159 nm Mode-Locked Macro-Micro-Pulsed Laser
$1,000,000.00
Description: All solid state Mode-locked laser at 589.159nm has the features of high peak power, high repetition rate, and short pulse duration, which is widely used in Laser Guide Star (LGS), Laser radar, Atomic cooling, Laser medical treatment, and so on.
Applications: laser guide star (LGS), laser radar, atomic cooling, laser medical treatment
Model #: LGS-589.159-PS
| Wavelength (nm) | 589.159±0.001 |
| Operating Mode | Actively mode-locked |
| Average Power (W) | 1-25W |
| Macro-Pulse Duration (µs) | <160 |
| Macro-Repetition Rate | 500Hz |
| Micro-Pulse Duration (ns) | <1 |
| Micro-Repetition Rate | 100±1MHz |
| Linewidth (GHz) | <1 |
| Power Stability (rms) | <5%, <3% |
| Warm-up Time (minutes) | <15 |
| Beam Divergence, 1/e² (mrad) | <1.5 |
| Beam Diameter, 1/e² (mm) | 1 |
| M² | <1.5 |
| Beam Height from Base Plate (mm) | 181 |

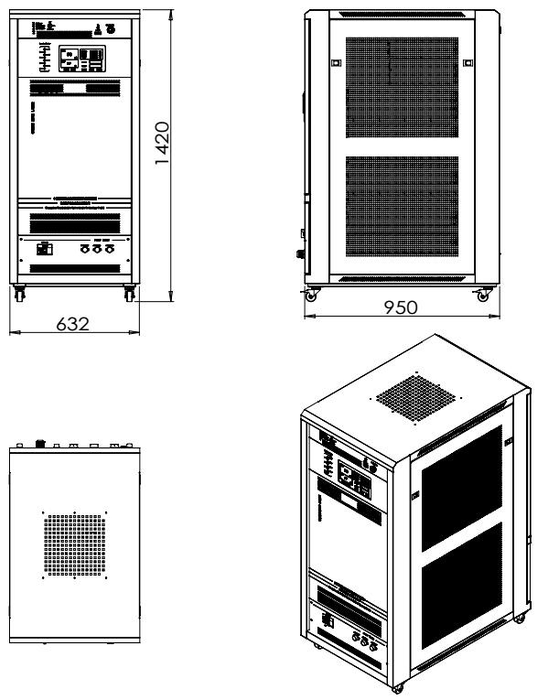

| Cooling Method | Water cooled |
| Operating Temperature (℃) | 15-35 |

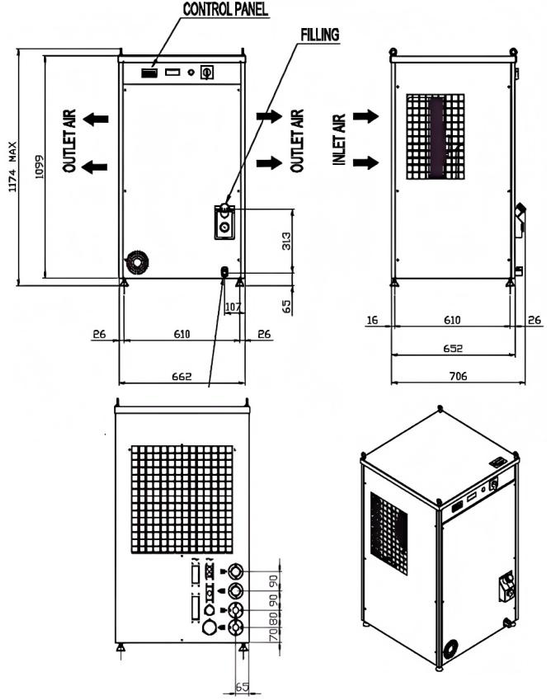

| Power Supply (110/220VAC) | PSU-LGS-PS |
| Expected Lifetime (pulses) | 10⁹ |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # LGS-589.159-PS
Please request a quotation for a real price and lead time.
