LPS-1064-A 1064 nm High Energy Lamp Pumped Solid State Q-Switched Laser
$1,000,000.00
Description: High energy lamp pumped solid state Q-switched laser at 1064 nm with high single pulse energy, short pulse duration, high peak power, and without water cooling machine.
Applications: LIF, LIBS, ICP-MS, Raman, scientific research, and so on
Model #: LPS-1064-A
| Wavelength (nm) | 1064±1 |
| Operating Mode | Actively |
| Single Pulse Energy (mJ) | 50-200 |
| Pulse Duration (ns) | <10 |
| Jitter (ns, sdev) | <1 (Int.) |
| Rep. Rate | 1-10 Hz (adjustable), single shot (optional) |
| Energy Stability (std dev/mean) | <3%, <2%, <1% |
| Beam Divergence, Full Angle (mrad) | <3 |
| Beam Diameter (mm) | ~6 |
| Warm-up Time (minutes) | <15 |
| Cooled Method | Air cooled (no water cooling machine) |
| Operating Temperature (℃) | 15-30 |

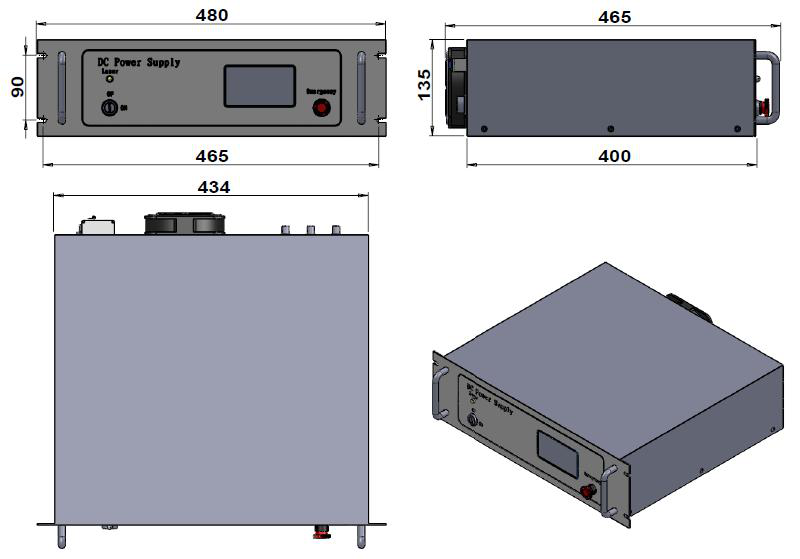

| Power Supply (110/220 VAC) | PSU-LPS-A |
| Expected Lifetime (pulses) | 10⁶ |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # LPS-1064-A
Please request a quotation for a real price and lead time.
