LPS-2940-S 2940 nm High-Energy Lamp-Pumped Pulsed Laser
$1,000,000.00
Description: High energy lamp-pumped pulsed laser at 2940 nm with high single pulse energy; the wavelength overlaps the water absorption peak, making it ideal for medical and cosmetic applications.
Applications: ranging, medical treatment, scientific research, laser cosmetology, optical sensing
Model #: LPS-2940-S
| Wavelength (nm) | 2940±1 |
| Operating Mode | Actively Q-switched (pulsed) |
| Single Pulse Energy (mJ) | 50-100 / 100-200 |
| Pulse Duration (ms) | 0.9 |
| Repetition Rate | 4 Hz (50-100 mJ) / 2 Hz (100-200 mJ) |
| Energy Stability (std dev/mean) | <5%, <3%, <2% |
| Beam Diameter (mm) | 5 |
| Warm-up Time (minutes) | <15 |

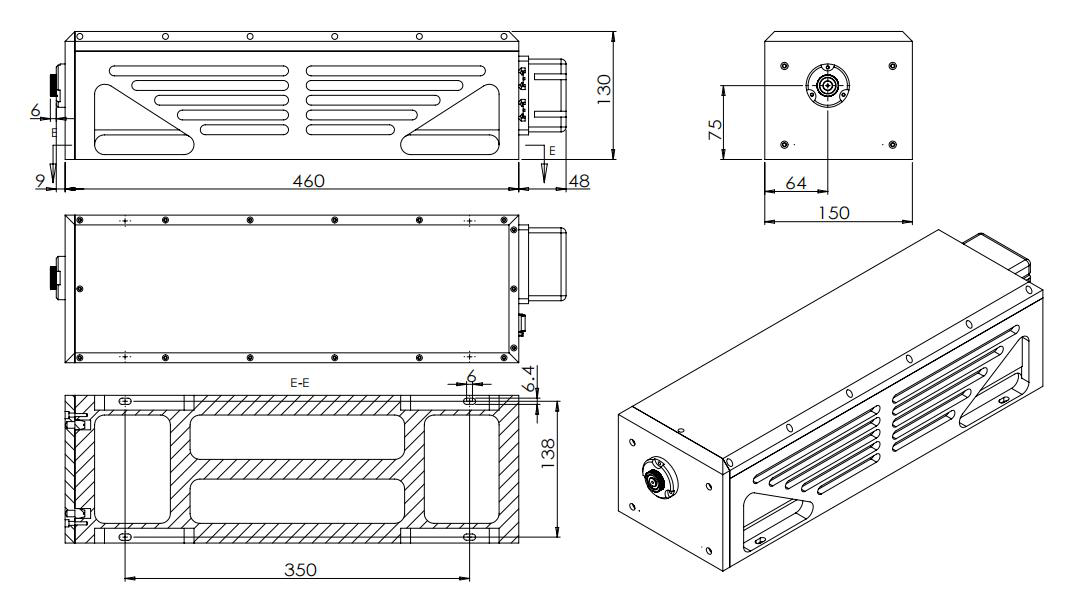

| Beam Height from Base Plate (mm) | 75 |
| Cooled Method | Water cooled |
| Operating Temperature (°C) | 15-35 |
| Power Supply (110/220 VAC) | PSU-LPS-S |
| Expected Lifetime (pulses) | 107 |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # LPS-2940-S
Please request a quotation for a real price and lead time.
