MBL-F-480 480 nm LD Pumped All-Solid-State Blue Laser
$1,000,000.00
Description: All solid state 480 nm blue laser is made features of ultra compact, long lifetime, cost-effectiveness and easy operating.
Applications: fluorescence sensors, Raman spectrum, laser printing, holography, laser display, submarine communication, biomedicine, laser lighting show
Model #: MBL-F-480
| Model | MBL-F-480 |
| Central Wavelength (nm) | 480±1 |
| Operating Mode | CW |
| Output Power (mW) | >1, 2, 5, …, 50 |
| Power Stability (rms, over 4 hours) | <5%, <10% |
| Transverse Mode | Near TEM00 |
| M² Factor | <2.0 |
| Beam Diameter at the Aperture (1/e², mm) | ~3.0 |
| Beam Divergence, Full Angle (mrad) | <1.5 |
| Beam Height from Base Plate (mm) | 45 |
| Polarization Ratio | >100:1 Horizontal±5 degree (Vertical Optional) |
| Warm-Up Time (minutes) | <10 |
| Pointing Stability After Warm-Up (mrad) | <0.05 |
| Operating Temperature (℃) | 10-35 |

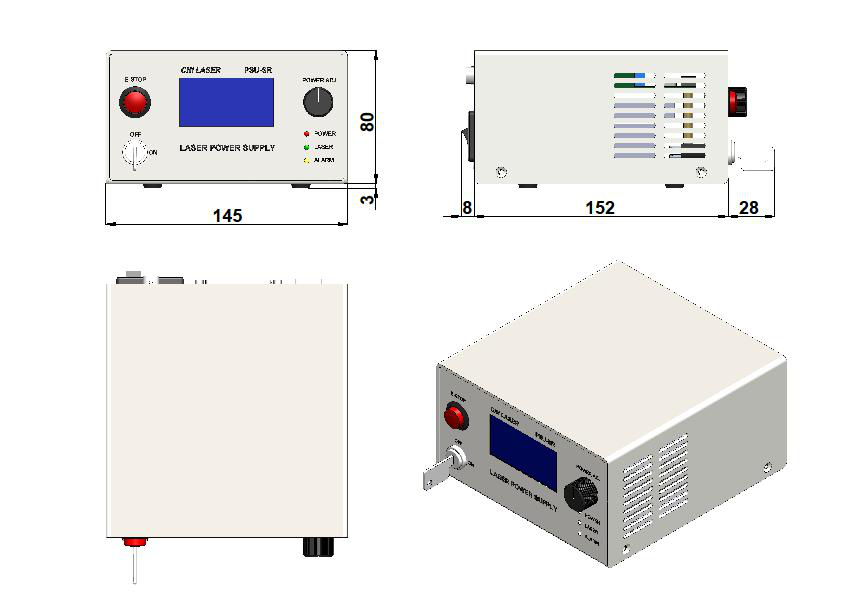

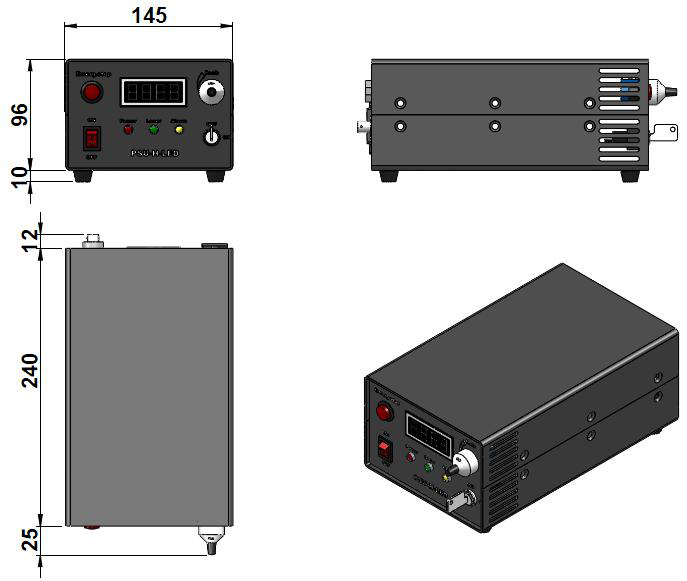

| Power Supply (90-264VAC) | PSU-H-LED/PSU-H-FDA/PSU-SR |
| Modulation Option | TTL on/off, 1Hz-1kHz |
| Expected Lifetime (hours) | 10000 |
| Warranty Period | 1 year |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # MBL-F-480
Please request a quotation for a real price and lead time.
