MBL-K-457-Water 457 nm Water-Cooled DPSS Blue Laser
$1,000,000.00
Description: MBL-K DPSS laser for Ti:Sa pumping up to 5W, continuous output, TEM00 beam profile, high stabilized.
Applications: Ti:Sa pumping, scientific experiments, laser display
Model #: MBL-K-457-Water
| Model | MBL-K-457-Water |
| Wavelength (nm) | 457±1 |
| Operating Mode | CW |
| Output Power (W)¹ | 1-5 |
| Power Stability (rms, 4 hours ±3°C) | <3%, <2%, (<1% optional) |
| Transverse Mode | TEM00 |
| Spectral Linewidth (nm) | <0.1 |
| M² | <1.1 |
| Beam Divergence, Full Angle (mrad) | ~1.0 |
| Beam Diameter at the Aperture (1/e², mm) | <2.5 |
| Warm-Up Time (minutes) | <10 |
| Pointing Stability (µrad, over 2 hours after warm-up and ±3°C) | <50 |
| Pointing Stability Over Temperature (µrad/°C) | <20 |
| Polarization Ratio | >50:1 (>100:1 optional), Horizontal (Vertical optional) |
| Beam Height from Base Plate (mm) | 68 |
| Cooled Method | Water cooled |
| Operating Temperature (℃) | 10-35 |

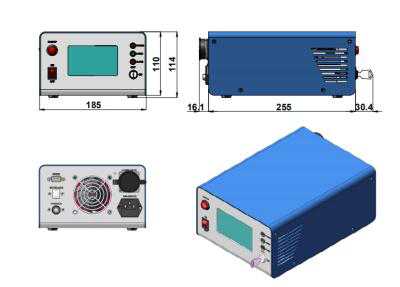

| Power Supply (100-240VAC) | PSU-W-LED |
| Modulation Option | DC-1kHz, 1kHz-10kHz, 10kHz-30kHz optional; TTL and Analog optional |
| Expected Lifetime (hours) | >10000 |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # MBL-K-457-Water
Please request a quotation for a real price and lead time.
