MBL-S-473 473 nm LD Pumped All-Solid-State Blue Laser
$1,000,000.00
Description: All solid state 473nm blue laser is made features of ultra compact, small size, wide operating temperature, good sealing, long lifetime, cost-effectiveness and easy operating, working under the pressure of 0.02kPa.
Applications: fluorescence sensors, Raman spectrum, laser printing, holography, laser display, submarine communication, biomedicine
Model #: MBL-S-473
| Model | MBL-S-473 |

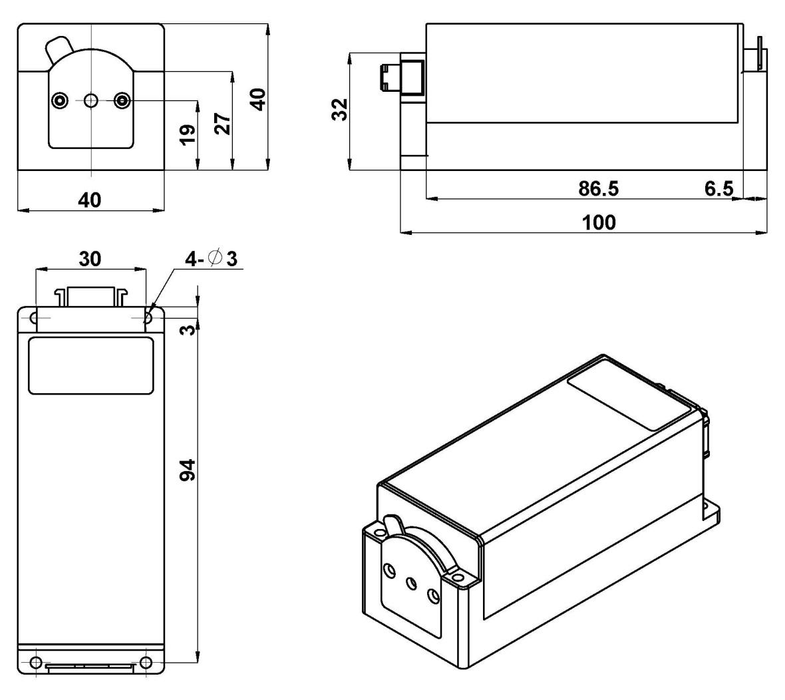

| Model | MBL-S-473-A (Harsh condition) / MBL-S-473-B (Normal condition) |
| Central Wavelength (nm) | 473±1 |
| Operating Mode | CW |
| Output Power (mW) | >1, 5, 10, 20, …, 50 / >50, …, 100 |
| Power Stability (rms, over 4 hours) | <1%, <2%, <3% / <2%, <3%, <5% |
| Transverse Mode | TEM00 |
| M² Factor | <1.2 |
| Beam Diameter at the Aperture (1/e², mm) | 0.7±0.05 |
| Beam Divergence, Full Angle (mrad) | <1.5 |
| Polarization Ratio | >100:1 Vertical±5 degree (Horizontal Optional) |
| Pointing Stability After Warm-Up (mrad) | <0.05 |
| Pointing Stability Over Temp. (µrad/°C) | <8 |
| Warm-Up Time (minutes) | <5 |
| Beam Height from Base Plate (mm) | 19 |
| Power Consumption (W) | <30 |
| Shock Tolerance (6ms) | 7g laterally, 15g vertically |
| IP Rating | IP67 / IP65 |

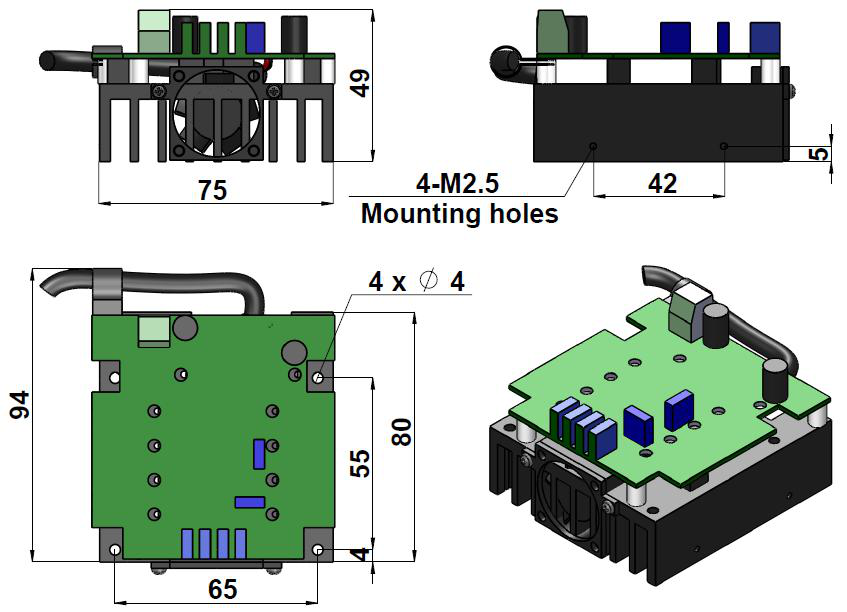

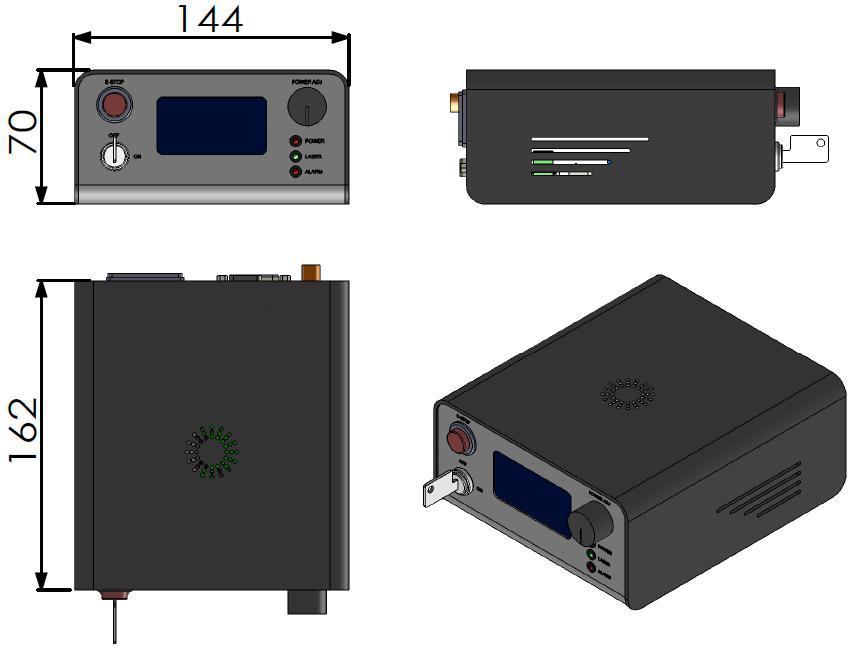

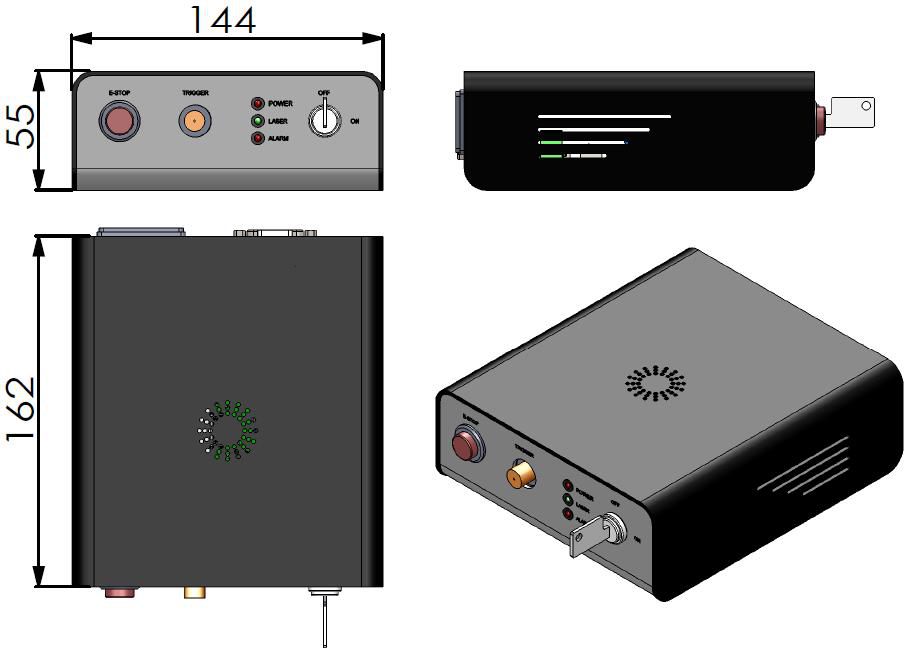

| Power Supply (90-264VAC) | PSU-H-FDA / PSU-A-DP / PSU-A-FP / PSU-III-OEM-97 (5VDC) |
| Operating Temperature (℃) | 0-60 / 10-35 |
| Expected Lifetime (hours) | 10000 |
| Warranty | 1 year |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # MBL-S-473
Please request a quotation for a real price and lead time.
