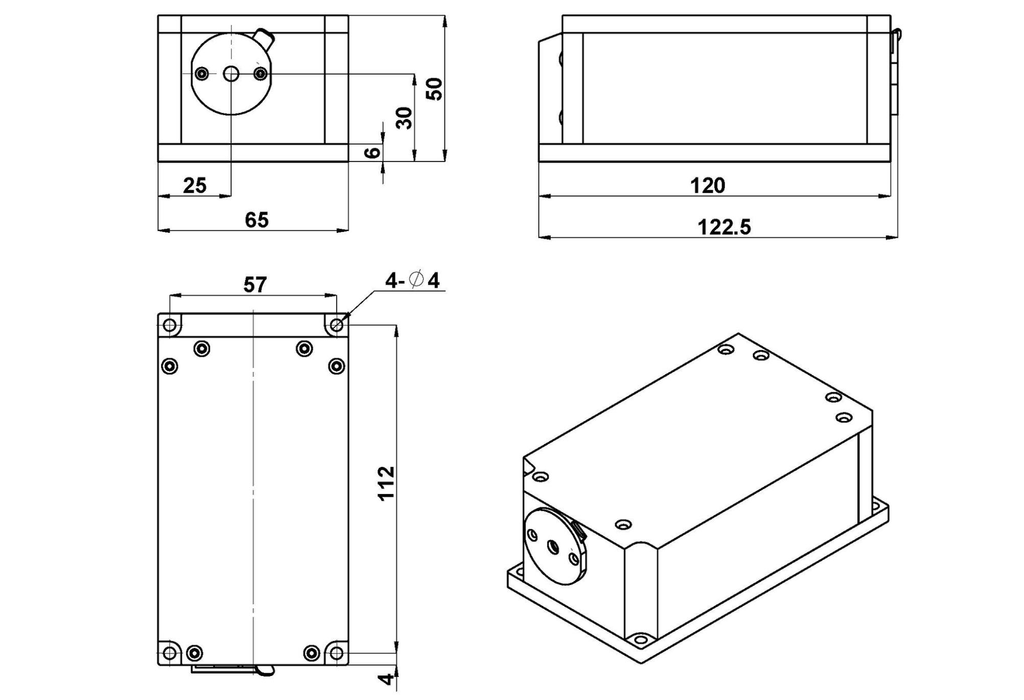

MDL-C-635 635 nm Long Coherent Length Diode Laser
$1,000,000.00
Description: It features a long coherent length, stable wavelength, long lifetime and easy operation. They are widely used in holography, interference, fluorescence, photoetching, flow cytometry, DNA sequencing, Raman spectroscopy, Laser radar, precision measurement, etc.
Applications: holography, interference, fluorescence, photoetching, flow cytometry, DNA sequencing, Raman spectroscopy, laser radar, precision measurement
Model #: MDL-C-635
| Central Wavelength (nm) | 635±5 |
| Operating Mode | CW |
| Output Power (mW) | 1-50 |
| Power Stability (rms, 4 hours ±3°C) | <3%, <2%, <1% |
| Frequency Shift (pm, over ±2°C and 2 hrs) | <20 |
| Transverse Mode | Near TEM00 |
| Coherent Length (m) | >1 |
| M² | <1.5 |
| Beam Diameter at Aperture (1/e², mm) | ~2.0 |
| Beam Divergence, Full Angle (mrad) | <1.5 |
| Polarization Ratio | >50:1, (>100:1 optional), Horizontal±5 degree (Vertical optional) |
| Warm-up Time (minutes) | <5 |
| Cooling Method | Conduction |
| Beam Height from Base Plate (mm) | 30 |
| Operating Temperature (°C) | 20-30 |
| Power Supply (100-240VAC) | PSU-A-D |
| Expected Lifetime (hours) | >10000 |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # MDL-C-635
Please request a quotation for a real price and lead time.
