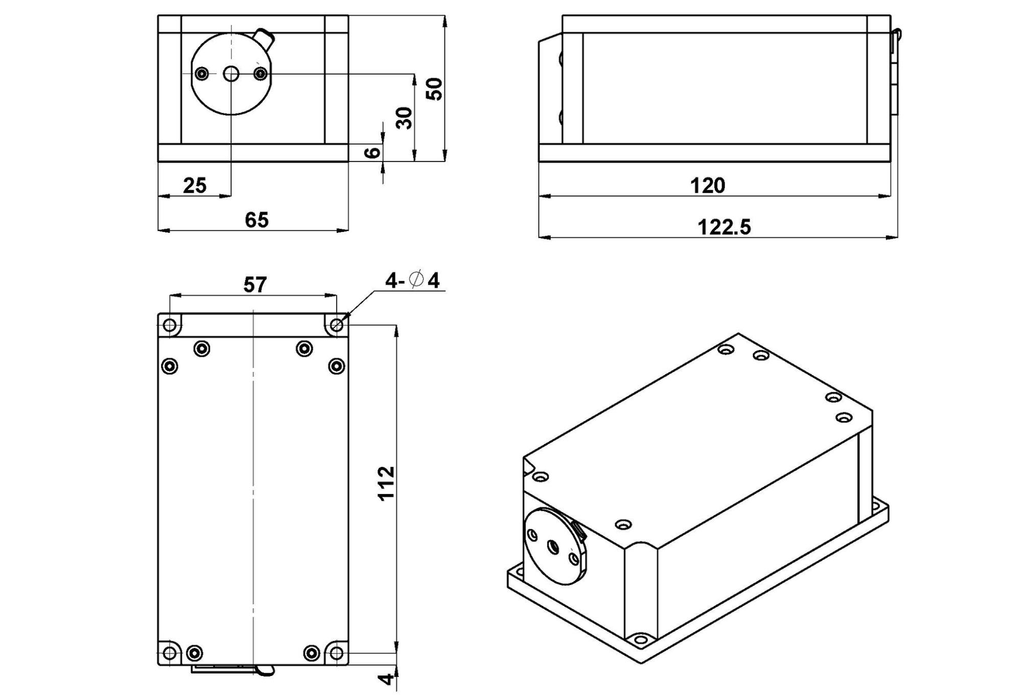

MDL-E-640 640 nm Narrow Linewidth Diode Laser
$1,000,000.00
Description: It features a narrow spectral linewidth, stable wavelength, long lifetime and easy operation. They are widely used in precision measurement, high resolution spectrum analysis, etc.
Applications: precision measurement, high resolution spectrum analysis
Model #: MDL-E-640
| Central Wavelength (nm) | 640±5 |
| Spectral Line Width (nm) | <0.06, <0.03 |
| Operating Mode | CW |
| Output Power (mW) | 1-50 |
| Power Stability (rms, 4 hours ±3°C) | <3%, <2%, <1% |
| Frequency Shift (pm, over ±2°C and 2 hrs) | <20 |
| Transverse Mode | Near TEM00 |
| M² | <1.5 |
| Beam Diameter at Aperture (1/e², mm) | ~2.0 |
| Beam Divergence, Full Angle (mrad) | <1.5 |
| Polarization Ratio | >50:1, (>100:1 optional), Horizontal±5 degree (Vertical optional) |
| Warm-up Time (minutes) | <5 |
| Cooling Method | Conduction |
| Beam Height from Base Plate (mm) | 30 |
| Operating Temperature (°C) | 20-30 |
| Power Supply (100-240VAC) | PSU-A-D |
| Expected Lifetime (hours) | >10000 |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # MDL-E-640
Please request a quotation for a real price and lead time.
