MDL-H-1720 1720 nm Infrared Diode Laser
$1,000,000.00
Description: Infrared diode laser at 1720nm. It features ultra compact design, long lifetime, cost-effectiveness and easy operation.
Applications: medical imaging, flow cytometry, DNA sequencing
Model #: MDL-H-1720
| Model | MDL-H-1720 |
| Central Wavelength (nm) | 1720±5 |
| Operating Mode | CW |
| Output Power (mW) | >1, 100, 200, …, 1000 |
| Power Stability (rms, over 4 hours) | <3%, <2%, <1% |
| Transverse Mode | Multimode |
| Dimensions of Beam at the Aperture (mm) | ~5×8 |
| Beam Divergence, Full Angle (mrad) | <3.0 |
| Warm-Up Time (minutes) | <5 |
| Beam Height from Base Plate (mm) | 29 |
| Operating Temperature (℃) | 10~35 |

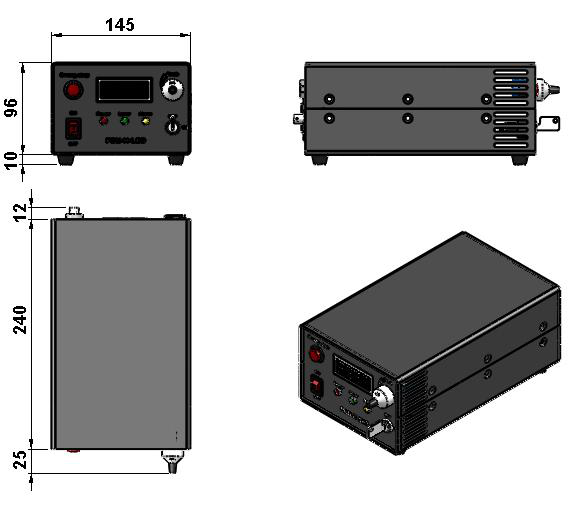

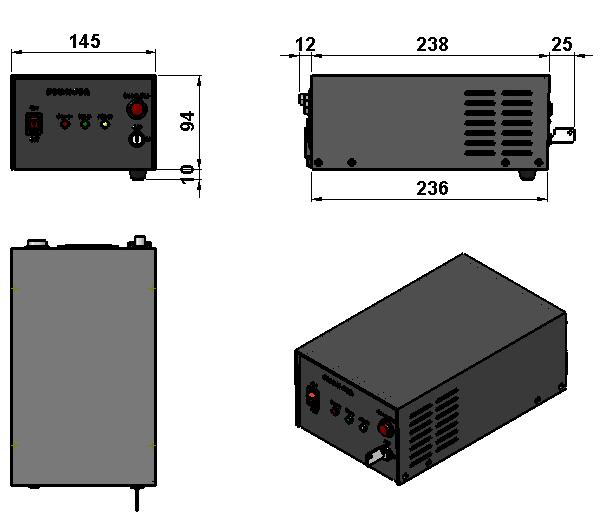

| Power Supply (100-240VAC) | PSU-H-LED / PSU-H-FDA |
| Modulation Option | TTL on/off, 1Hz-1kHz, 1kHz-10kHz, 10kHz-30kHz; and Analog modulation optional |
| Expected Lifetime (hours) | 10000 |
| Warranty | 1 year |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # MDL-H-1720
Please request a quotation for a real price and lead time.
