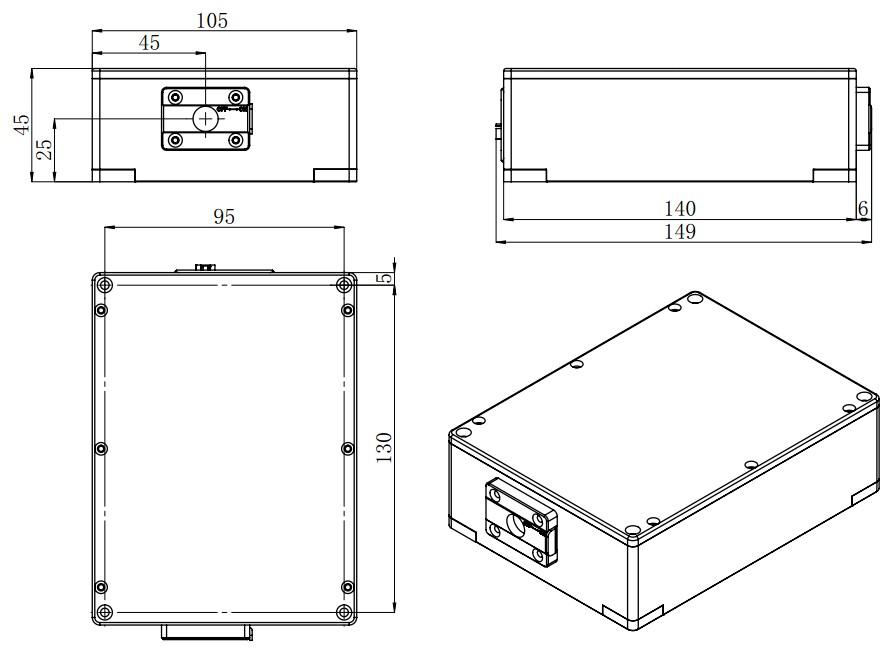

MDL-HD-635 635 nm High Power Red Diode Laser
$1,000,000.00
Description: It features ultra compact design, long lifetime, cost-effectiveness and easy operation. They are widely used in laser projection, laser shows, biomedical applications, holography, metrology, etc.
Applications: laser projection, laser shows, biomedical applications, holography, metrology
Model #: MDL-HD-635
| Central Wavelength (nm) | 635±10 |
| Operating Mode | CW |
| Output Power (mW) | 1500-3000 |
| Power Stability (rms, 4 hours ±3°C) | <2%, <1%, <0.5% |
| Transverse Mode | Multimode |
| Polarization Direction | Horizontal + Vertical |
| Beam Diameter at Aperture (mm) | ~6.7×7.2 |
| Beam Divergence, Full Angle (mrad) | ~2.5×2.5 |
| Warm-up Time (minutes) | <5 |
| Beam Height from Base Plate (mm) | 25 |
| Operating Temperature (℃) | 25±3 |
| Power Supply (100-240VAC) | PSU-N-FDA / PSU-N-LED |
| Modulation Option | DC-1kHz, 1kHz-10kHz, 10kHz-30kHz optional; TTL and Analog optional |
| Expected Lifetime (hours) | >10000 |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # MDL-HD-635
Please request a quotation for a real price and lead time.
