MDL-I-808 808 nm Infrared Diode Laser Module
$1,000,000.00
Description: Diode infrared laser module at 808nm is made features of ultra compact, long lifetime, low cost and easy operating, which is used in measurement, communication, spectrum analysis, etc.
Applications: measurement, communication, spectrum analysis
Model #: MDL-I-808
| Model | MDL-I-808 |
| Wavelength (nm) | 808±3 |
| Operating Mode | CW |
| Output Power (mW) | >1, 100, 200, 300, …, 2500 |
| Power Stability (rms, over 4 hours) | <1%, <3%, <5% |
| Transverse Mode | Multimode |
| Dimensions of Beam at the Aperture (mm) | ~5×8 |
| Beam Divergence, Full Angle (mrad) | <3.0 |
| Warm-Up Time (minutes) | <5 |
| Beam Height from Base Plate (mm) | 24.8 |
| Operating Temperature (℃) | 10~35 |

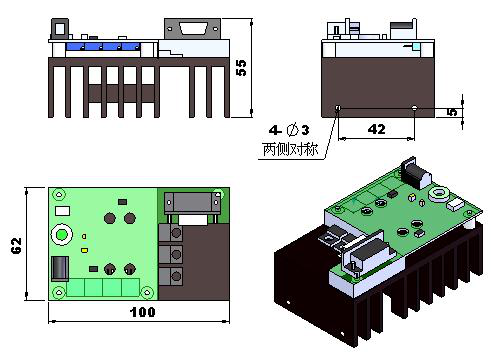

| Power Supply | PSU-III-OEM |
| TTL / Analog Modulation | TTL or Analog with 1Hz-1KHz, 1KHz-10KHz, 10KHz-30KHz optional |
| Expected Lifetime (hours) | 10000 |
| Warranty | 1 year |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # MDL-I-808
Please request a quotation for a real price and lead time.
