MDL-III-1030DFB-SM 1030 nm DFB Fiber Output Diode Laser
$1,000,000.00
Description: DFB infrared diode laser at 1030nm with single mode fiber output. It features ultra compact design, long lifetime, cost-effectiveness and easy operation.
Applications: medical imaging, flow cytometry, DNA sequencing
Model #: MDL-III-1030DFB-SM
| Model | MDL-III-1030DFB-SM |
| Central Wavelength (nm) | 1030±1 |
| Operating Mode | CW |
| Output Power After Fiber (mW) | >1, 2, 3, …, 200 |
| Power Stability (rms, over 4 hours) | <3%, <2%, <1%, <0.5% |
| Fiber Type | SM fiber (PM fiber optional) |
| Fiber Core Diameter (µm) | 6 |
| Fiber NA | 0.12 |
| Fiber Connector | FC/PC, FC/APC |
| Fiber Length (m) | 1 (other lengths available on request) |
| Transverse Mode | TEM00 |
| Ellipticity | >0.95 |
| M² Factor After Fiber | ~1.1 |
| Warm-Up Time (minutes) | <5 |
| Operating Temperature (℃) | 10~35 |

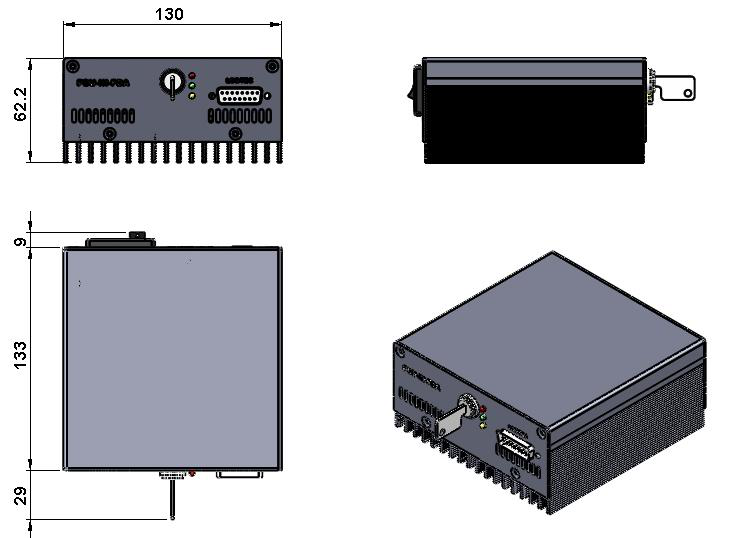

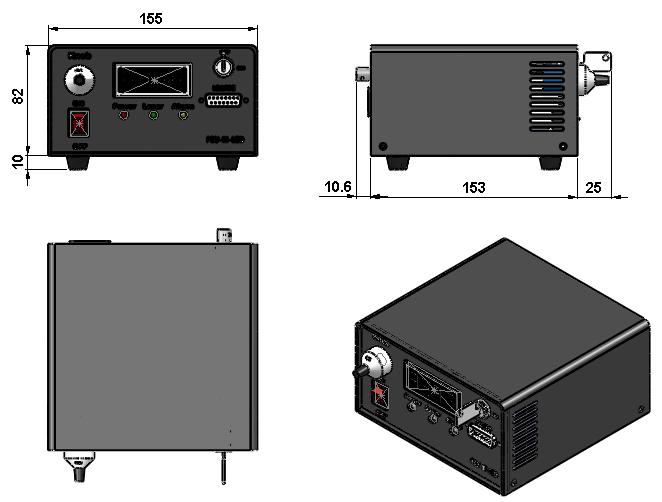

| Power Supply | 85-264VAC: PSU-III-LED/PSU-III-FDA (frequency 1Hz-30kHz); 100-240VAC: PSU-A-D (frequency 30kHz-100kHz) |
| Modulation Option | TTL on/off, 1Hz-1kHz, 1kHz-10kHz, 10kHz-30kHz, 30kHz-100kHz; and Analog modulation optional |
| Expected Lifetime (hours) | 10000 |
| Warranty | 1 year |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # MDL-III-1030DFB-SM
Please request a quotation for a real price and lead time.
