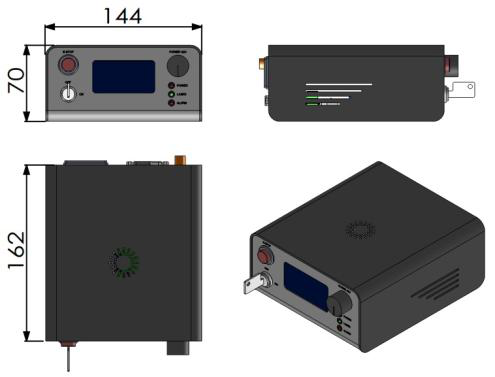

MDL-III-1550R 1550 nm Round Beam Infrared Diode Laser
$1,000,000.00
Description: Infrared diode laser at 1550 nm with round beam, ultra compact design, long lifetime, cost-effectiveness and easy operation.
Applications: measurement, communication, spectrum analysis, etc.
Model #: MDL-III-1550R
| Central Wavelength (nm) | 1550±20 |
| Operating Mode | CW |
| Output Power (mW) | 1-200 |
| Power Stability (rms, over 4 hours) | <1%, <2%, <3% |
| Transverse Mode | Round |
| Dimensions of Beam at the Aperture (mm) | ~2 |
| Beam Divergence, Full Angle (mrad) | ~10 (1-150 mW) / ~20 (>150-200 mW) |
| Warm-up Time (minutes) | <5 |
| Beam Height from Base Plate (mm) | 24.8 |
| Operating Temperature (°C) | 10-35 |
| Power Supply | 85-264 VAC: PSU-III-LED/PSU-III-FDA (1 Hz-30 kHz); 100-240 VAC: PSU-A-D (30 kHz-100 kHz) |
| Modulation Option | TTL or Analog with 1 Hz-1 kHz, 1 kHz-10 kHz, 10 kHz-30 kHz, 30 kHz-100 kHz optional |
| Expected Lifetime (hours) | 10000 |
| Warranty | 1 year |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # MDL-III-1550R
Please request a quotation for a real price and lead time.
