MDL-III-705L 705 nm Red Diode Laser
$1,000,000.00
Description: Red diode laser at 705nm. It features ultra compact design, long lifetime, cost-effectiveness and easy operation.
Applications: medical imaging, flow cytometry, DNA sequencing
Model #: MDL-III-705L
| Model | MDL-III-705L |
| Central Wavelength (nm) | 705±10 |
| Operating Mode | CW |
| Output Power (mW)¹ | 1-25 |
| Power Stability (rms, 4 hours ±3°C) | <2%, <1%, <0.5% |
| Transverse Mode | Near TEM00 |
| M² | <1.5 |
| Beam Diameter at the Aperture (1/e², mm) | ~3.0 |
| Beam Divergence, Full Angle (mrad) | <1.0 |
| Polarization Ratio | >10:1 (>50:1 optional), Horizontal±5 degree (Vertical optional) |
| Warm-Up Time (minutes) | <5 |
| Cooled Method | Conduction |

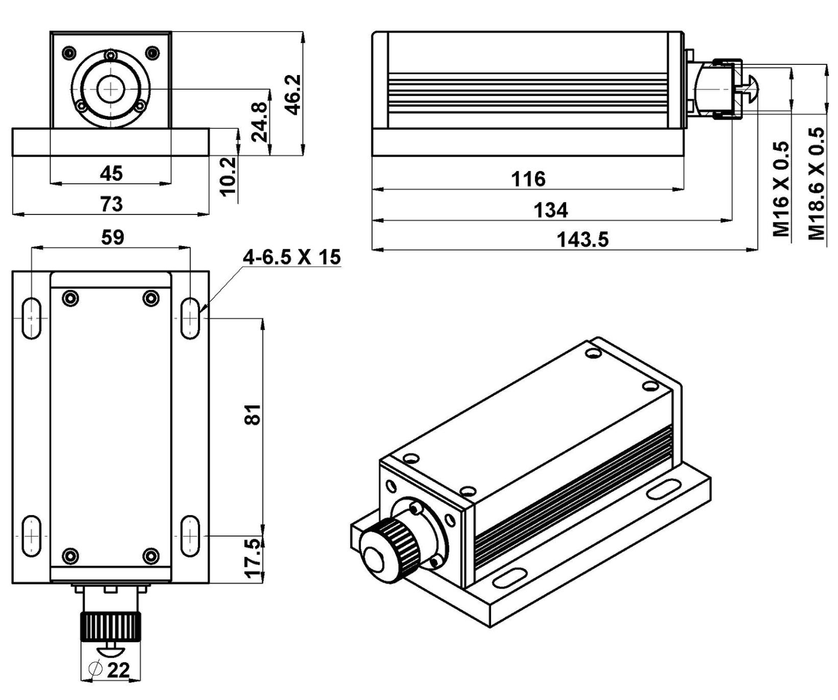

| Beam Height from Base Plate (mm) | 24.8 |
| Operating Temperature (℃) | 10-35 |

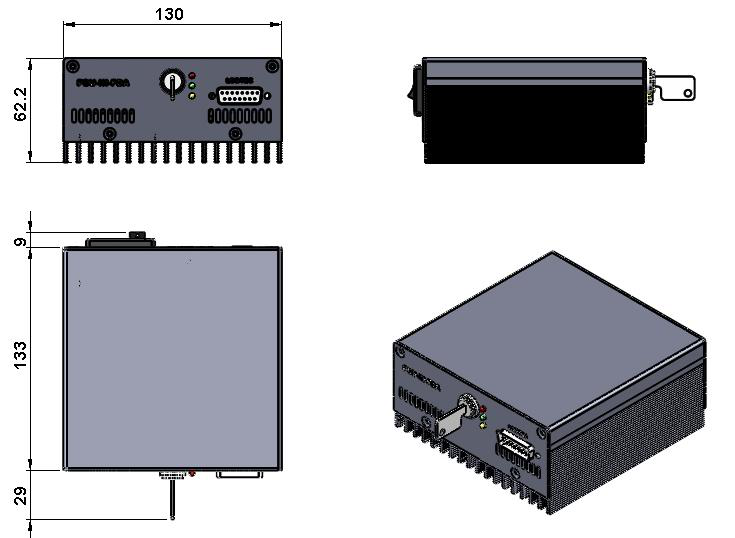

| Power Supply (100-240VAC) | PSU-III-FDA/PSU-III-LED/PSU-A-D/PSU-III-OEM |
| Modulation Option | DC-1kHz, 1kHz-10kHz, 10kHz-30kHz, 30kHz-100kHz optional; TTL and Analog optional |
| Expected Lifetime (hours) | >10000 |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # MDL-III-705L
Please request a quotation for a real price and lead time.
