MDL-N-1530 1530 nm High Power Infrared Diode Laser Module
$1,000,000.00
Description: Diode infrared laser module at 1530 nm featuring ultra compact design, long lifetime and easy operating.
Applications: measurement, communication, spectrum analysis, etc.
Model #: MDL-N-1530
| Wavelength (nm) | 1530±10 |
| Operating Mode | CW |
| Output Power (W) | 1-3.5 |
| Power Stability (rms, over 4 hours) | <0.5%, <1%, <2% |
| Transverse Mode | Multimode |
| M2 Factor | <20 |
| Beam Divergence, Full Angle (mrad) | <3.0 |
| Beam Diameter at the Aperture (1/e2, mm) | 5-8 |
| Warm-up Time (minutes) | <5 |

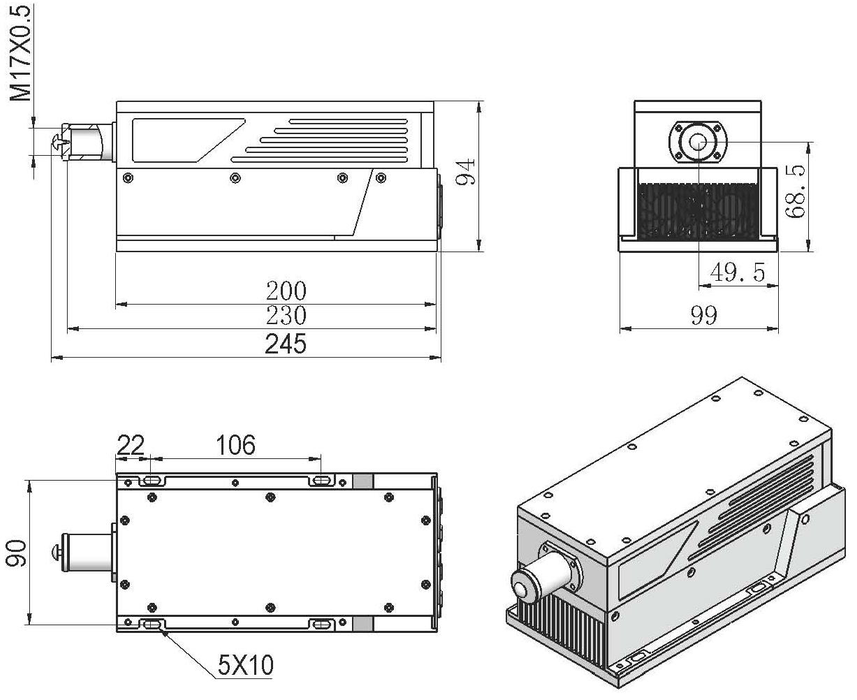

| Beam Height from Base Plate (mm) | 68.5 |
| Operating Temperature (°C) | 10-35 |
| Power Supply (90-264 VAC) | PSU-H-LED/PSU-H-FDA |
| Modulation Option | TTL or Analog with 1 Hz-1 kHz, 1 kHz-10 kHz, 10 kHz-30 kHz optional |
| Expected Lifetime (hours) | 10000 |
| Warranty | 1 year |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # MDL-N-1530
Please request a quotation for a real price and lead time.
