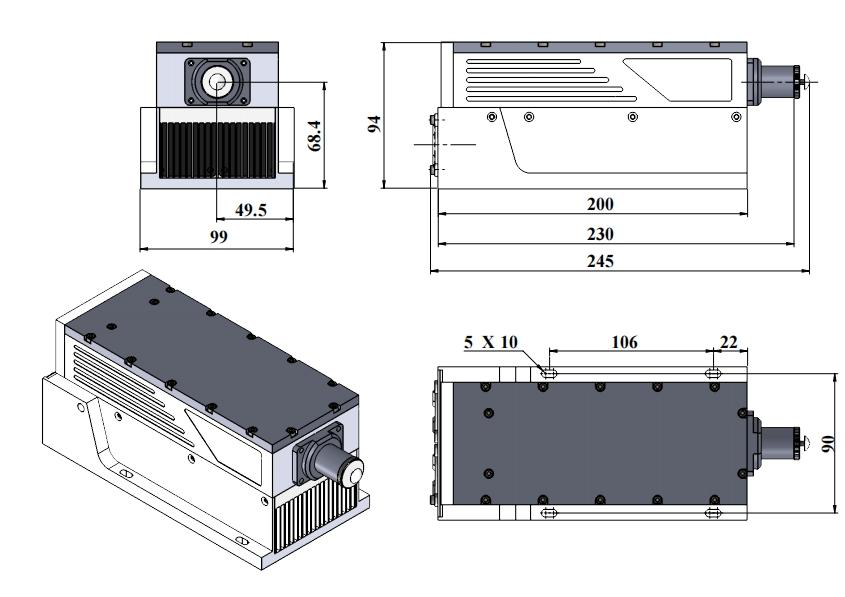

MDL-N-1550 1550 nm High Power Infrared Diode Laser Module
$1,000,000.00
Description: Diode infrared laser module at 1550 nm featuring ultra compact design, long lifetime and easy operating.
Applications: measurement, communication, spectrum analysis, etc.
Model #: MDL-N-1550
| Wavelength (nm) | 1550±10 |
| Operating Mode | CW |
| Output Power (W) | 1-3.5 |
| Power Stability (rms, 4 hours ± 3°C) | <2%, <1%, (<0.5% optional) |
| Transverse Mode | Multimode |
| Beam Divergence, Full Angle (mrad) | <3.0 |
| Dimensions of Beam at the Aperture (mm) | ~5×8 |
| Warm-up Time (minutes) | <10 |
| Pointing Stability (µrad) (over 2 hours after warm-up and ±3°C) | <50 |
| Pointing Stability Over Temperature (µrad/°C) | <20 |
| Beam Height from Base Plate (mm) | 68.4 |
| Operating Temperature (°C) | 10-35 |
| Power Supply (100-240 VAC) | PSU-H-FDA/PSU-H-LED/PSU-H-OEM |
| Modulation Option | DC-1 kHz, 1 kHz-10 kHz, 10 kHz-30 kHz optional; TTL and Analog optional |
| Expected Lifetime (hours) | >10000 |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # MDL-N-1550
Please request a quotation for a real price and lead time.
