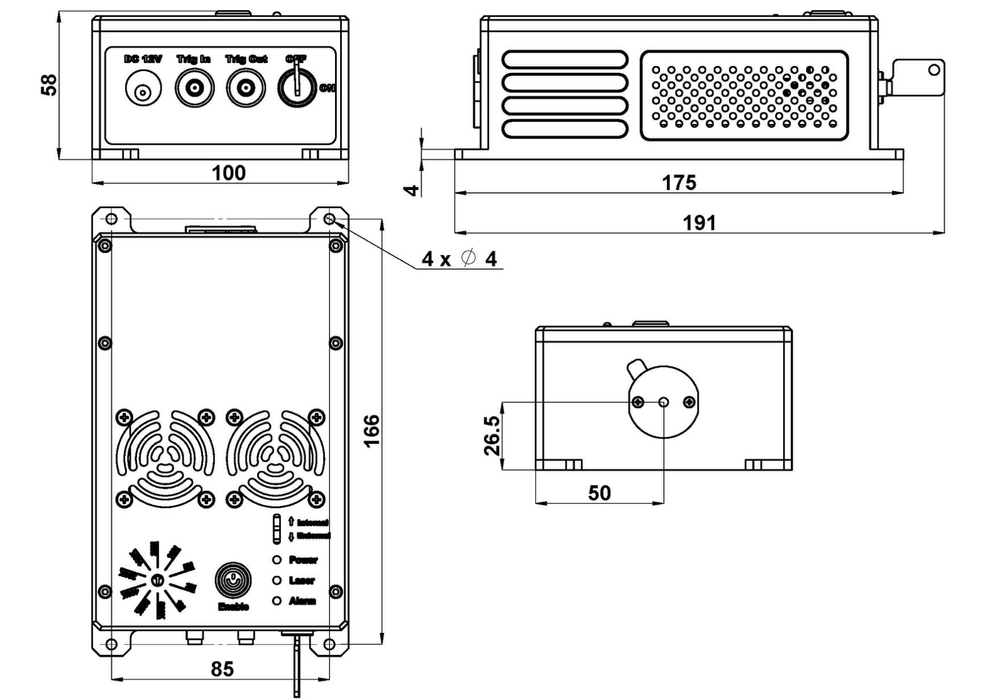

MDL-PS-655 655 nm Picosecond Pulsed Diode Laser
$1,000,000.00
Description: It features integrated electronics, repetition rate 100kHz to 80MHz, synchronized signal output. Fast ON/OFF/multiplexing capability. Suitable for fluorescence excitation, time resolve spectrum, highly sensitive absorption spectroscopy, etc.
Applications: fluorescence excitation, time resolve spectrum, highly sensitive absorption spectroscopy
Model #: MDL-PS-655
| Central Wavelength (nm) | 655±5 |
| Operating Mode | Pulsed |
| Peak Power (mW) | 1-50 |
| Power Stability (rms, 4 hours ±3°C) | <3%, <2%, <1% |
| Pulse Width (ps) | 100-1000 |
| Transverse Mode | Near TEM00 |
| Repetition Rate | 100kHz-20MHz / 20MHz-80MHz |
| Beam Diameter at Aperture (1/e², mm) | ~1.2 |
| Beam Divergence, Full Angle (mrad) | ~1.0 |
| Warm-up Time (minutes) | <5 |
| Cooling Method | Air cooled |
| Beam Height from Base Plate (mm) | 26.5 |
| Operating Temperature (℃) | 10-35 |
| Operating Voltage (VDC) | 12V/3.34A |
| Expected Lifetime (hours) | >10000 |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # MDL-PS-655
Please request a quotation for a real price and lead time.
