MDL-PS-808 808 nm Picosecond Pulsed Infrared Diode Laser
$1,000,000.00
Description: It features integrated electronics, repetition rate 100kHz to 80MHz, synchronized signal output, fast ON/OFF and multiplexing capability. Suitable for fluorescence excitation, time resolved spectrum, highly sensitive absorption spectroscopy, etc.
Applications: fluorescence excitation, time resolved spectrum, highly sensitive absorption spectroscopy
Model #: MDL-PS-808
| Model | MDL-PS-808 |
| Central Wavelength (nm) | 808±10 |
| Operating Mode | Pulsed |
| Peak Power (mW)¹ | 1-60 |
| Power Stability (rms, 4 hours ±3°C) | <3%, <2% |
| Pulse Width (ps) | 100-1000 |
| Transverse Mode | Near TEM00 |
| Repetition Rate | 100kHz-20MHz² / 20MHz-80MHz³ |
| Beam Diameter at the Aperture (1/e², mm) | ~3.5 |
| Beam Divergence, Full Angle (mrad) | <1.0 |
| Warm-Up Time (minutes) | <5 |
| Cooled Method | Air cooled |

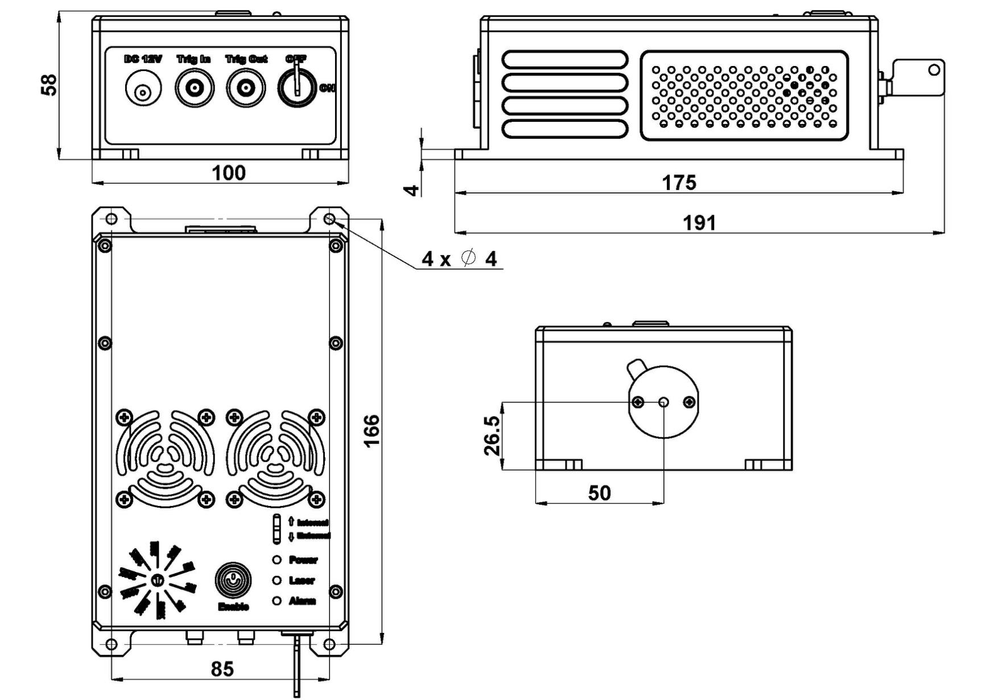

| Beam Height from Base Plate (mm) | 26.5 |
| Operating Temperature (℃) | 10-35 |
| Operating Voltage (VDC) | 12V/3.34A |
| Expected Lifetime (hours) | >10000 |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # MDL-PS-808
Please request a quotation for a real price and lead time.
