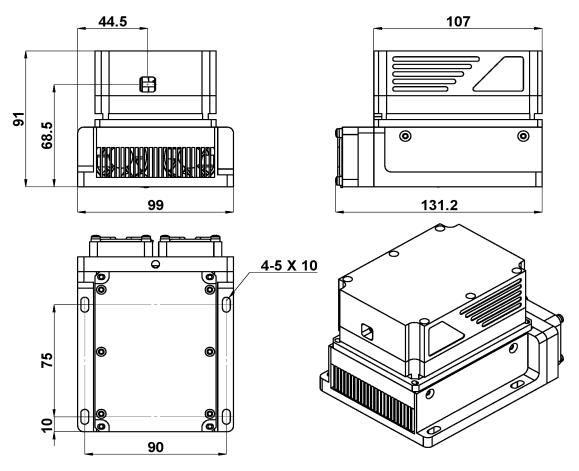

MDL-SD-640 640 nm Red Diode Laser
$1,000,000.00
Description: It features ultra compact design, long lifetime, cost-effectiveness and easy operation. They are widely used in measurement, communication, spectrum analysis, etc.
Applications: measurement, communication, spectrum analysis
Model #: MDL-SD-640
| Central Wavelength (nm) | 637±5 / 640±5 / 642±5 |
| Operating Mode | CW |
| Output Power (mW) | >1, 50, 100, …, 300 |
| Power Stability (rms, over 4 hours) | <1%, <2%, <3% |
| Polarization Direction | Horizontal / Vertical |
| Beam Diameter at Aperture (mm) | ~2.8×2.3 |
| Beam Divergence, Full Angle (mrad) | <1.0 |
| Warm-up Time (minutes) | <5 |
| Beam Height from Base Plate (mm) | 68.5 |
| Operating Temperature (℃) | 10~35 |

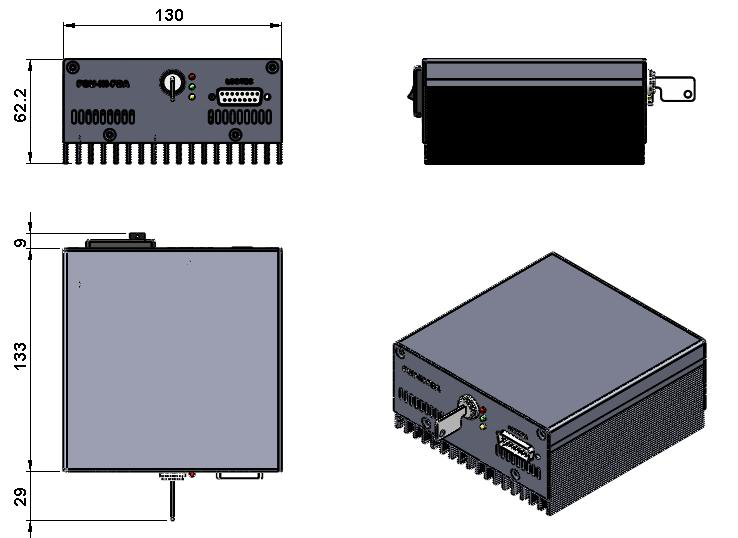

| Power Supply (85-264VAC) | PSU-III-LED / PSU-III-FDA |
| TTL / Analog Modulation | TTL or Analog with 1Hz-1kHz, 1kHz-10kHz, 10kHz-30kHz optional |
| Expected Lifetime (hours) | 10000 |
| Warranty | 1 year |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # MDL-SD-640
Please request a quotation for a real price and lead time.
