MDL-SN-808 808 nm Small Size Infrared Diode Laser
$1,000,000.00
Description: Diode infrared laser module at 808nm is made features of ultra compact, long lifetime and easy operating, which is used in measurement, communication, spectrum analysis, etc.
Applications: measurement, communication, spectrum analysis
Model #: MDL-SN-808
| Model | MDL-SN-808 |
| Wavelength (nm) | 808±3 |
| Operating Mode | CW |
| Output Power (W)¹ | 6-12 |
| Power Stability (rms, 4 hours ±3°C) | <2%, <1%, (<0.5% optional) |
| Transverse Mode | Multimode |
| Beam Diameter at the Aperture (1/e², mm) | ~5×8 |
| Beam Divergence, Full Angle (mrad) | <3.0 |
| Warm-Up Time (minutes) | <5 |
| Beam Height from Base Plate (mm) | 11 |
| Operating Temperature (℃) | 10-35 |

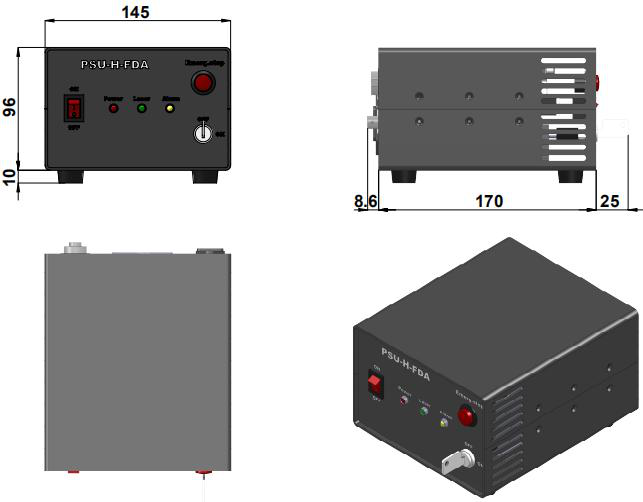

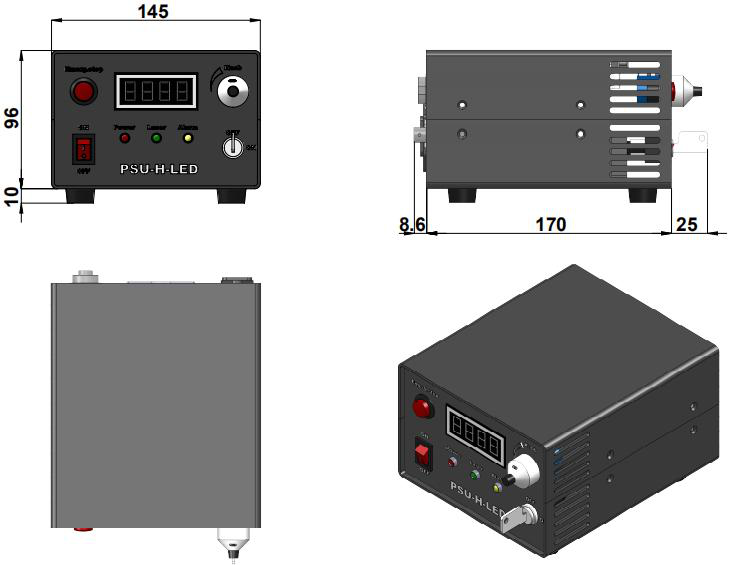

| Power Supply (100-240VAC) | PSU-H-FDA/PSU-H-LED |
| Modulation Option | DC-1kHz, 1kHz-10kHz, 10kHz-30kHz optional; TTL and Analog optional |
| Expected Lifetime (hours) | >10000 |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # MDL-SN-808
Please request a quotation for a real price and lead time.
