MDL-XD-444 444 nm LD Pumped All-Solid-State CW UV Laser
$1,000,000.00
Description: It features ultra compact design, long lifetime, cost-effectiveness and easy operation.
Applications: laser projection, laser shows, biomedical applications, holography, metrology
Model #: MDL-XD-444
| Model | MDL-XD-444 |
| Central Wavelength (nm) | 444±5 |
| Operating Mode | CW |
| Output Power (W)¹ | 16-20 |
| Power Stability (rms, 4 hours ±3°C) | <2%, <1%, <0.5% |
| Transverse Mode | Multimode |
| Polarization Direction | Horizontal + Vertical |
| Beam Diameter at the Aperture (mm) | ~7.5×5 |
| Beam Divergence, Full Angle (mrad) | <2×4 |
| Warm-Up Time (minutes) | <5 |

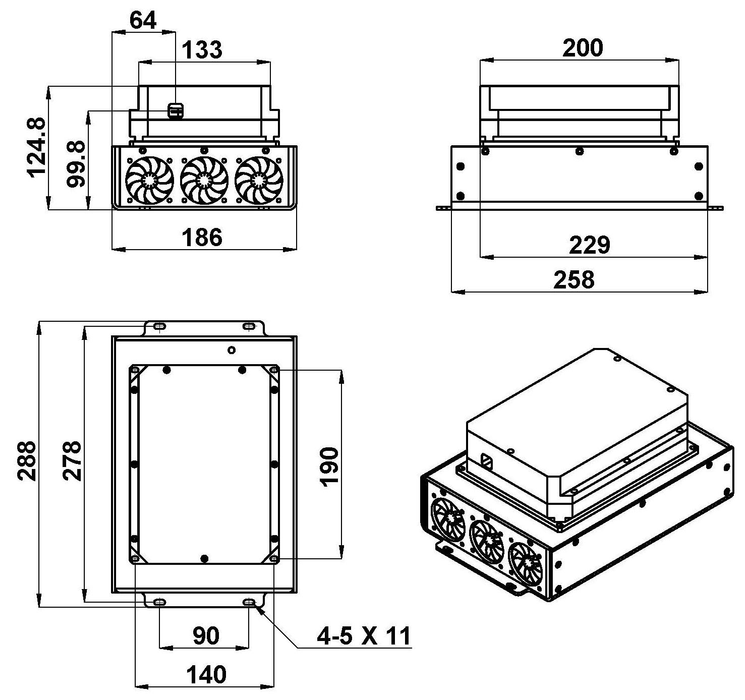

| Beam Height from Base Plate (mm) | 99.8 |
| Operating Temperature (℃) | 10-35 |
| Power Supply (100-240VAC) | PSU-N-FDA/PSU-N-LED |
| Modulation Option | DC-1kHz, 1kHz-10kHz, 10kHz-30kHz optional; TTL and Analog optional |
| Expected Lifetime (hours) | >10000 |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # MDL-XD-444
Please request a quotation for a real price and lead time.
