447 nm LD Pumped All-Solid-State CW UV Laser MDL-XD-447
$1,000,000.00
Description: It features ultra compact design, long lifetime, cost-effectiveness and easy operation.
Applications: laser projection, laser shows, biomedical applications, holography, metrology
Model #: MDL-XD-447
| Model | MDL-XD-447 |
| Wavelength | 447 nm |
| Operating mode | CW |
| Output power (W)¹ | 16-20 |
| Power stability (rms, 4 hours ±3°C) | <2%, <1%, <0.5% |
| Transverse mode | Multimode |
| Polarization direction | Horizontal + Vertical |
| Beam diameter at the aperture (mm) | ~7.5×5 |
| Beam divergence, full angle (mrad) | <2×4 |
| Warm-up time (minutes) | <5 |

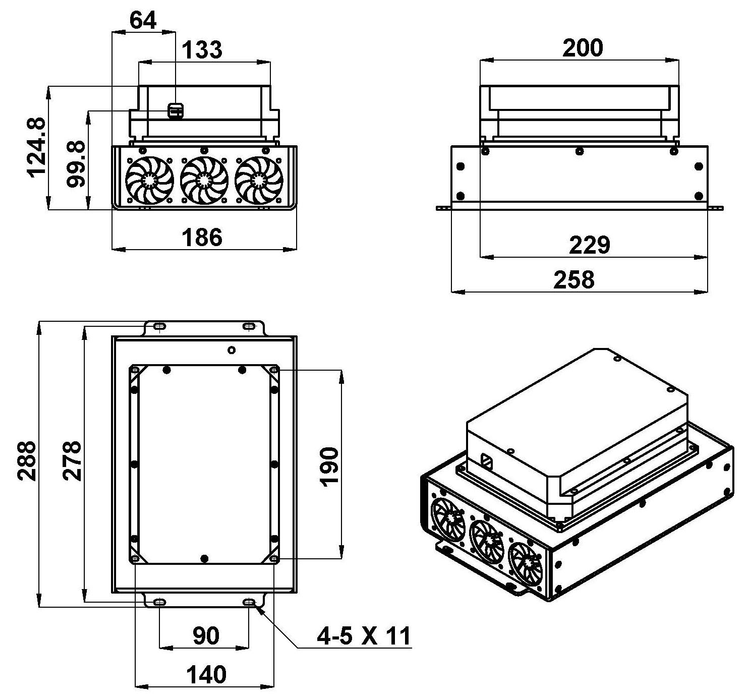

| Beam height from base plate (mm) | 99.8 |
| Operating temperature (℃) | 10-35 |
| Power supply (100-240VAC) | PSU-N-FDA/PSU-N-LED |
| Expected lifetime (hours) | >10000 |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # MDL-XD-447
Please request a quotation for a real price and lead time.
