MDL-XD-520 520 nm Green Diode Laser
$1,000,000.00
Description: It features ultra compact design, long lifetime, cost-effectiveness and easy operation.
Applications: measurement, communication, spectrum analysis
Model #: MDL-XD-520
| Model | MDL-XD-520 |
| Central Wavelength (nm) | 520±10 |
| Operating Mode | CW |
| Output Power (W)¹ | 4-7 / 7-10 |
| Power Stability (rms, 4 hours ±3°C) | <2%, <1%, <0.5% |
| Transverse Mode | Multimode |
| Polarization Direction | Horizontal+Vertical |
| Beam Diameter at the Aperture (mm) | <5×5 / ~7.5×5 |
| Beam Divergence, Full Angle (mrad) | ~3.0 |
| Warm-Up Time (minutes) | <5 |
| Beam Height from Base Plate (mm) | 99.8 |
| Operating Temperature (℃) | 10-35 |

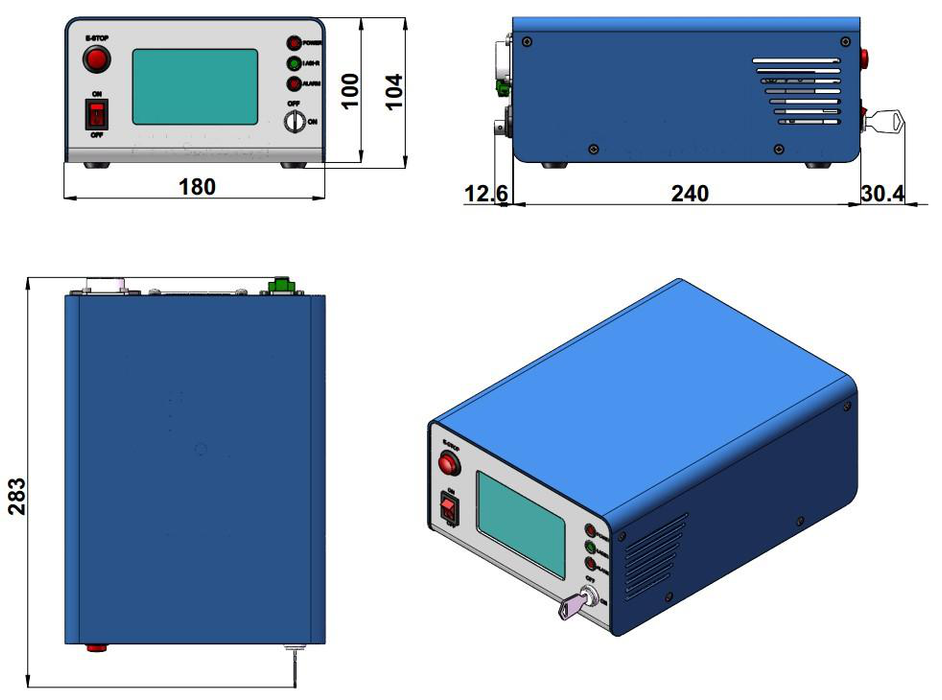

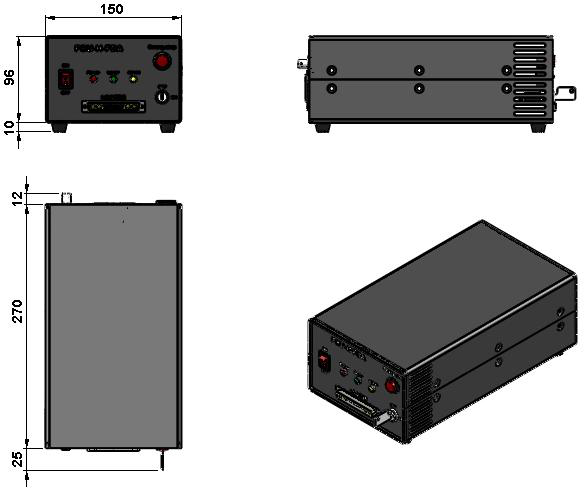

| Power Supply (100-240VAC) | PSU-N-FDA/PSU-N-LED |
| Modulation Option | DC-1kHz, 1kHz-10kHz, 10kHz-30kHz optional; TTL and Analog optional |
| Expected Lifetime (hours) | >10000 |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # MDL-XD-520
Please request a quotation for a real price and lead time.
