MDL-XD-650 650 nm High Power Red Diode Laser
$1,000,000.00
Description: It features ultra compact design, long lifetime, cost-effectiveness and easy operation. They are widely used in measurement, spectrum analysis, laser lighting show, etc.
Applications: measurement, spectrum analysis, laser lighting show
Model #: MDL-XD-650
| Central Wavelength (nm) | 650±12 |
| Operating Mode | CW |
| Output Power (mW) | 3000-4500 |
| Power Stability (rms, over 4 hours) | <2%, <1%, <0.5% |
| Polarization Direction | Horizontal / Vertical |
| Beam Diameter at Aperture (mm) | ~9.5×14 |
| Beam Divergence, Full Angle (mrad) | <3.5×4.0 |
| Warm-up Time (minutes) | <5 |
| Operating Temperature (℃) | 10-35 |

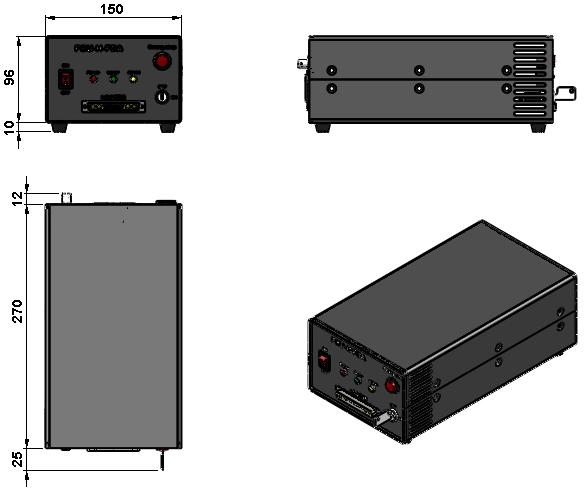

| Power Supply (100-240VAC) | PSU-N-LED / PSU-N-FDA |
| TTL / Analog Modulation | TTL or Analog with 1Hz-1kHz, 1kHz-10kHz, 10kHz-30kHz optional |
| Expected Lifetime (hours) | 10000 |
| Warranty | 1 year |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # MDL-XD-650
Please request a quotation for a real price and lead time.
