MDL-XN-4580-DFB 4580 nm Infrared DFB QCL Diode Laser
$1,000,000.00
Description: Infrared DFB QCL diode laser at 4.58 µm featuring ultra compact design, single-frequency narrow linewidth operation, long lifetime, cost-effectiveness and easy operation.
Applications: measurement, communication, spectrum analysis, etc.
Model #: MDL-XN-4580-DFB
| Central Wavelength (µm) | 4.58±0.1 |
| Spectral Line Width (MHz) | <50 |
| Side-Mode Suppression Ratio (dB) | >25 |
| Operating Mode | CW |
| Output Power (mW) | 1-15 |
| Power Stability (rms, 4 hours ± 3°C) | <3%, <2%, <1% |
| Transverse Mode | Near TEM00 |
| Beam Diameter at the Aperture (mm) | <3.0 |
| Beam Divergence, Full Angle (mrad) | <5.0 |
| Warm-up Time (minutes) | <10 |
| Cooled Method | Air cooled |

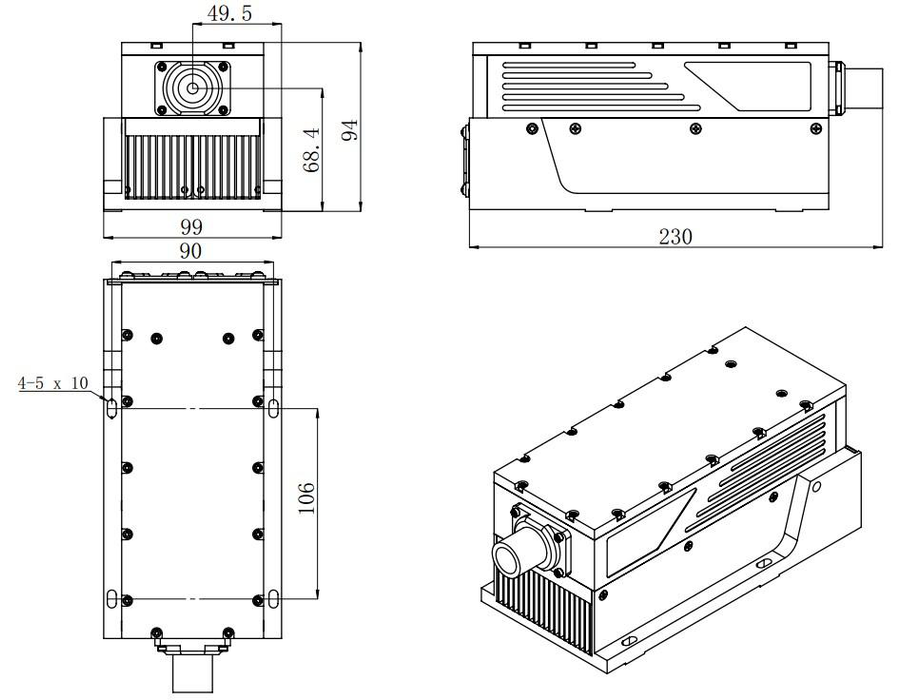

| Beam Height from Base Plate (mm) | 68.4 |
| Operating Temperature (°C) | 10-35 |
| Power Supply (100-240 VAC) | PSU-H-LED |
| Modulation Option | DC-1 kHz; TTL and Analog optional |
| Expected Lifetime (hours) | >10000 |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # MDL-XN-4580-DFB
Please request a quotation for a real price and lead time.
