MDL-XN-4600 4600 nm Infrared QCL Diode Laser
$1,000,000.00
Description: Infrared QCL diode laser at 4.6 µm featuring ultra compact design, long lifetime, cost-effectiveness and easy operation.
Applications: measurement, communication, spectrum analysis, etc.
Model #: MDL-XN-4600
| Central Wavelength (µm) | 4.6±0.3 |
| Operating Mode | CW |
| Output Power (mW) | 1-1500 |
| Power Stability (rms, 4 hours ± 3°C) | <3%, <2%, <1% |
| Transverse Mode | Near TEM00 |
| Beam Diameter at the Aperture (mm) | <3.0 |
| Beam Divergence, Full Angle (mrad) | <5.0 |
| Warm-up Time (minutes) | <10 |
| Cooled Method | Air cooled |

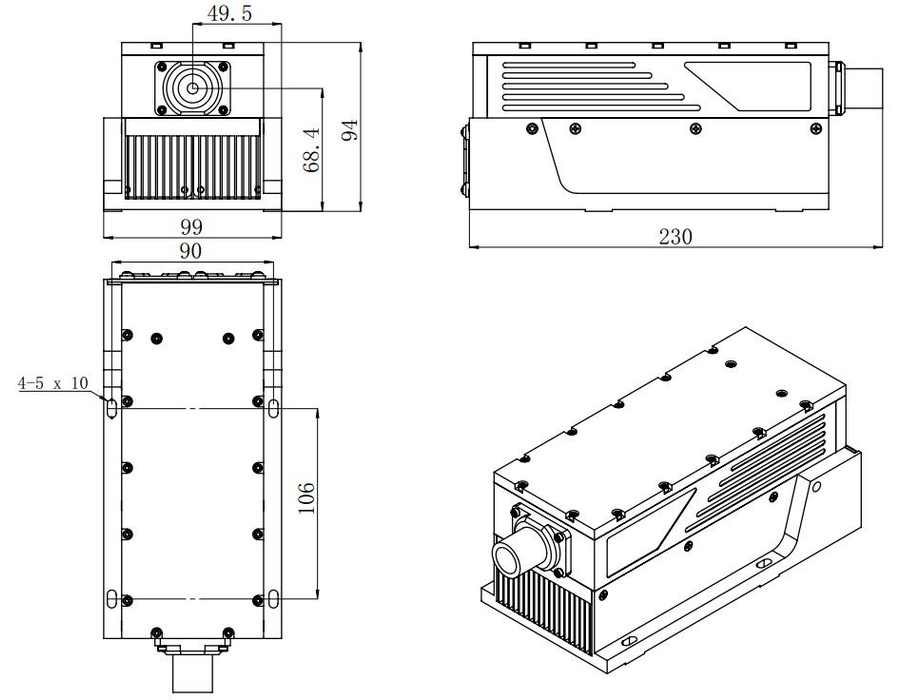

| Beam Height from Base Plate (mm) | 68.4 |
| Operating Temperature (°C) | 10-35 |
| Power Supply (100-240 VAC) | PSU-H-LED |
| Modulation Option | DC-1 kHz; TTL and Analog optional |
| Expected Lifetime (hours) | >10000 |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # MDL-XN-4600
Please request a quotation for a real price and lead time.
