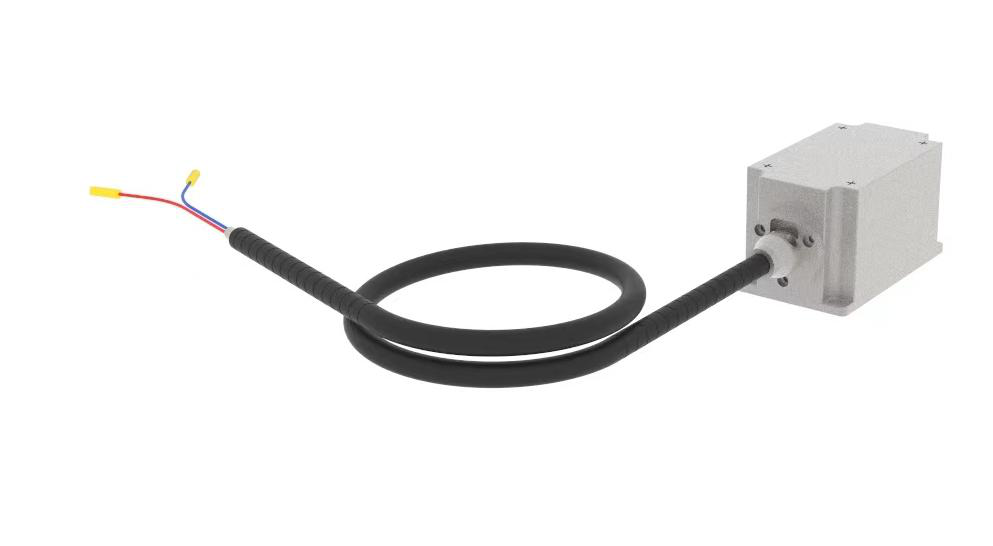

MDL-XS-G-505/SM/1-2/50 505 nm Fiber-Coupled Green Laser (1 to 2 SM)
$1,000,000.00
Description: The laser is coupled with 1 to 2 single mode fiber. Adjusting the laser on/off, output power, modulation mode and read working hours by operating software.
Applications: fiber coupled laser light sources, scientific experiments
Model #: MDL-XS-G-505/SM/1-2/50
| Model | MDL-XS-G-505/SM/1-2/50 |
| Wavelength (nm) | 505±2 |
| Operating Mode | CW |
| Output Power after per Collimator (mW) | ≥10 |
| Splitting Ratio | 50:50 |
| Power Stability (rms, over 4 hours) | <1% |
| Fiber Type | 1 to 2 SM fiber |
| Fiber Length | ~1m |
| Beam Diameter after Collimator @200mm (mm) | 0.9±0.05 |
| External Diameter of Collimator (mm) | 3.2±0.02 |
| Length of Collimator (mm) | 10 |
| Warm-Up Time (minutes) | <5 |
| Operating Temperature (℃) | 10-35 |
| Input Voltage | DC12V |
| Modulation | TTL + Analog |
| Expected Lifetime (hours) | 10000 |
| Warranty | 1 year |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # MDL-XS-G-505/SM/1-2/50
Please request a quotation for a real price and lead time.
