MGL-DF-501 501 nm LD Pumped All-Solid-State Green Laser
$1,000,000.00
Description: All solid state green laser features of ultra compact, long lifetime and easy operating.
Applications: laser display, medical treatment, scientific research
Model #: MGL-DF-501
| Model | MGL-DF-501 |
| Wavelength (nm) | 501±1 |
| Operating Mode | CW |
| Transverse Mode | Near TEM00 |
| Output Power (mW)¹ | 200-600 |
| Power Stability (rms, 4 hours ±3°C) | <5%, <3% |
| Beam Divergence, Full Angle (mrad) | <5 |
| Beam Diameter at the Aperture (1/e², mm) | ~5 |
| Polarization Ratio | >100:1 |

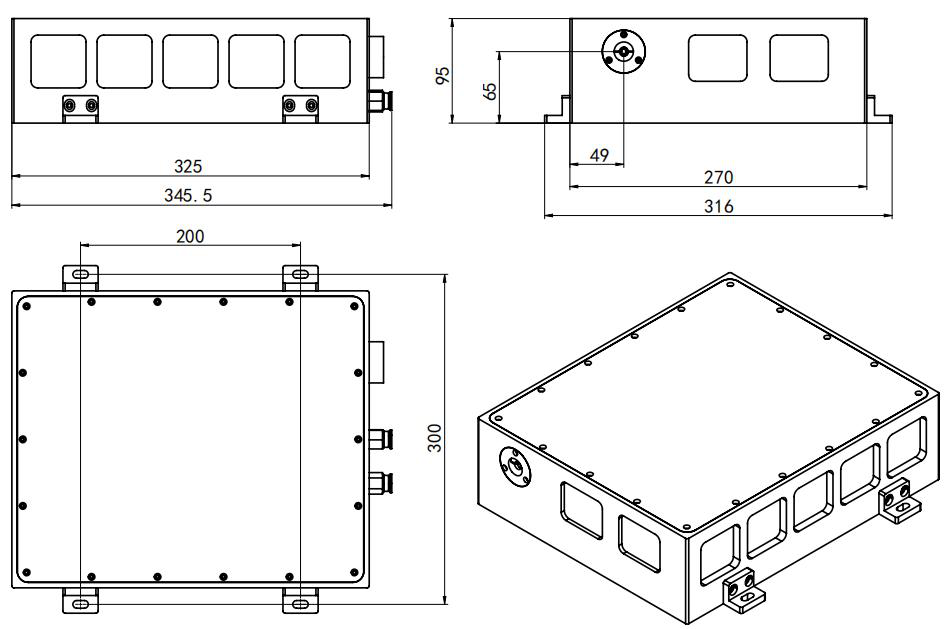

| Beam Height from Base Plate (mm) | 65 |
| Warm-Up Time (minutes) | <10 |
| Operating Temperature (℃) | 15-30 |

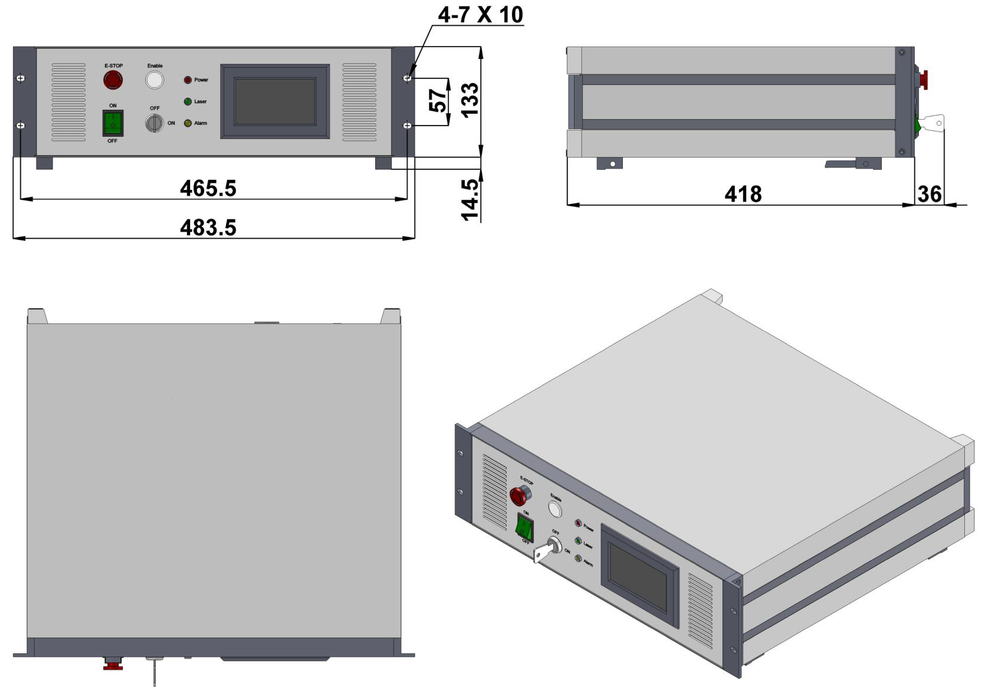

| Power Supply (100-240VAC) | PSU-AOM (3U) |
| Expected Lifetime (hours) | >10000 |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # MGL-DF-501
Please request a quotation for a real price and lead time.
