MGL-DP-545-B 545 nm LD Pumped All-Solid-State Green Laser
$1,000,000.00
Description: All solid-state CW mode laser is made features of ultra compact, easy operating, high power and stability.
Applications: flow cytometry, spectrum analysis, microscopy, semiconductor inspection, cell sorting, optical instrument, physics experiment
Model #: MGL-DP-545-B
| Model | MGL-DP-545-B |
| Central Wavelength (nm) | 545±1 |
| Operating Mode | CW |
| Output Power (mW)¹ | 1000-3500 |
| Power Stability (rms, 4 hours ±3°C) | <3%, <2%, <1% |
| Transverse Mode | Near TEM00 (TEM00 optional) |
| Beam Diameter at the Aperture (1/e², mm) | 2.0 |
| Beam Divergence, Full Angle (mrad) | <5.0 |
| Warm-Up Time (minutes) | <10 |
| Polarization Ratio | >100:1, Horizontal (Vertical optional) |
| Beam Height from Base Plate (mm) | 58.5 |

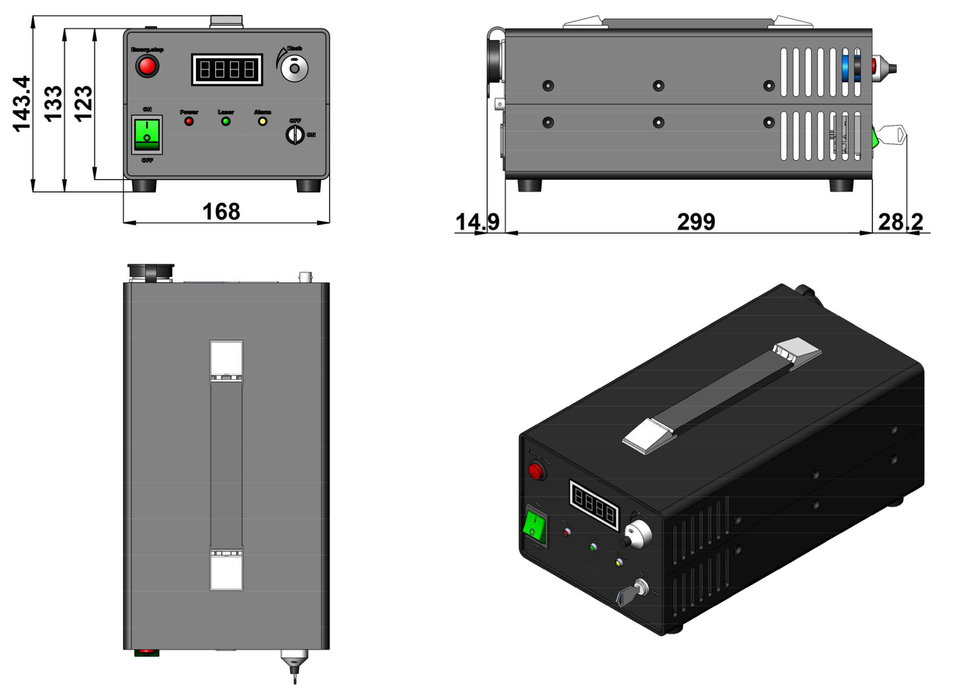

| Cooled Method | Water cooled (WCH-580) |
| Operating Temperature (℃) | 10-35 |
| Modulation Option | DC-1kHz; TTL and Analog optional |

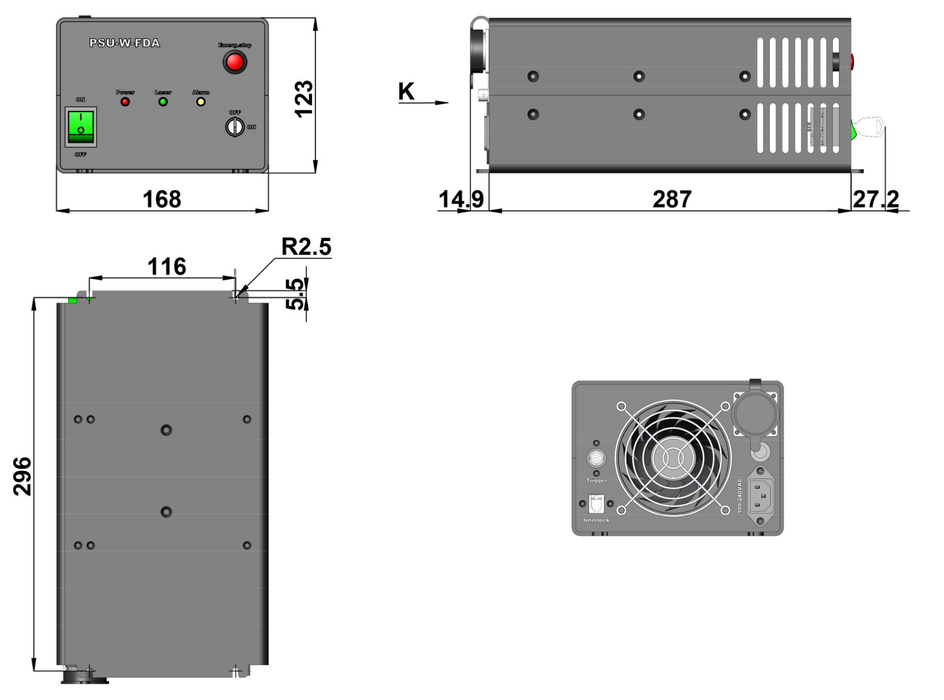

| Power Supply (100-240VAC) | PSU-W-FDA/PSU-W-LED |
| Expected Lifetime (hours) | >10000 |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # MGL-DP-545-B
Please request a quotation for a real price and lead time.
