MGL-F-588 588 nm LD Pumped All-Solid-State Yellow Laser
$1,000,000.00
Description: All solid state 588nm yellow laser is made features of ultra compact, long lifetime, cost-effectiveness and easy operating, which is widely used in collimation, laser medical treatment, scientific experiment, optical instrument, etc.
Applications: collimation, laser medical treatment, scientific experiment, optical instrument
Model #: MGL-F-588
| Central Wavelength (nm) | 588±2 |
| Operating Mode | CW |
| Output Power (mW) | >1, 10, 20, … , 300 |
| Power Stability (rms, over 4 hours) | <3%, <5%, <10% |
| Transverse Mode | TEM00 |
| M² Factor | <2.0 |
| Beam Diameter at Aperture (1/e², mm) | ~3.0 |
| Beam Divergence, Full Angle (mrad) | <2.0 |
| Polarization Ratio | >100:1 |
| Warm-up Time (minutes) | <10 |
| Pointing Stability After Warm-up (mrad) | <0.05 |

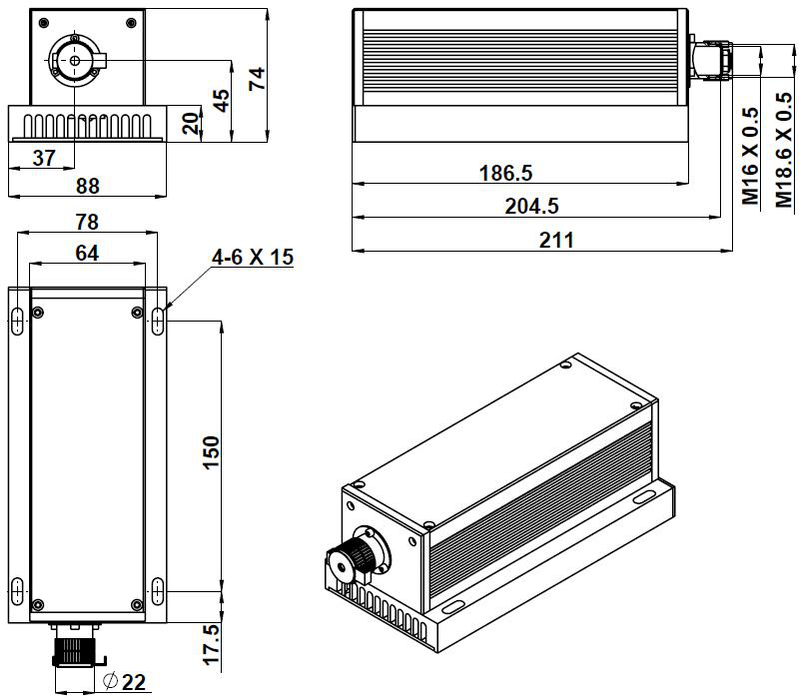

| Beam Height from Base Plate (mm) | 45 |
| Operating Temperature (℃) | 10~35 |

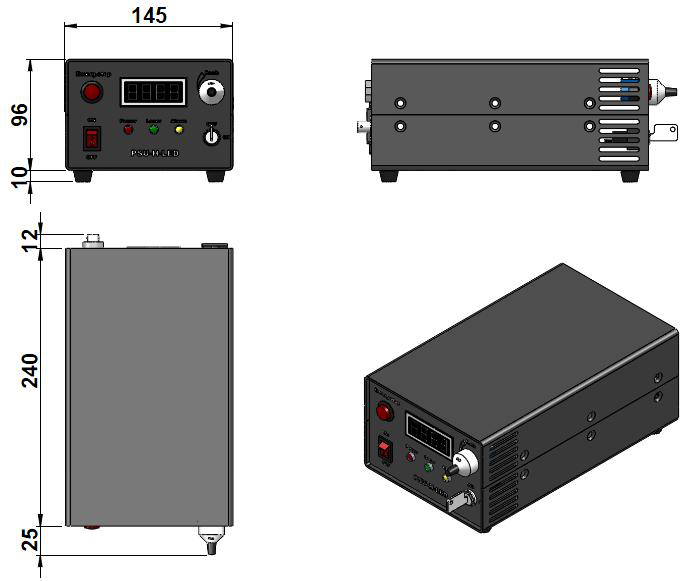

| Power Supply (100-240VAC) | PSU-H-LED / PSU-H-FDA |
| Modulation Option | TTL on/off, 1Hz-1kHz, 1kHz-10kHz, 10kHz-30kHz; and Analog modulation optional |
| Expected Lifetime (hours) | 10000 |
| Warranty Period | 1 year |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # MGL-F-588
Please request a quotation for a real price and lead time.
