MGL-FN-522-SM 522 nm Single-Mode Fiber Output Green Laser
$1,000,000.00
Description: All solid-state CW mode laser with single-mode fiber output, features of ultra compact, easy operating, high power and stability.
Applications: fiber coupled laser light sources, scientific experiments
Model #: MGL-FN-522-SM
| Model | MGL-FN-522-SM |
| Wavelength (nm) | 522±1 |
| Operating Mode | CW |
| Output Power (mW)¹ | 1-300 |
| Power Stability (rms, 4 hours ±3°C) | <3%, <2%, <1% |
| Transverse Mode | TEM00 |
| M² | <1.2 |
| Polarization (optional) | >50:1 after PM fiber |
| Fiber Connector | FC/APC |
| Fiber Jacket | PVC |
| Fiber Length² | 1m |
| Warm-Up Time (minutes) | <10 |
| Operating Temperature (℃) | 10-35 |
| Modulation Option | DC-1kHz; TTL and Analog optional |

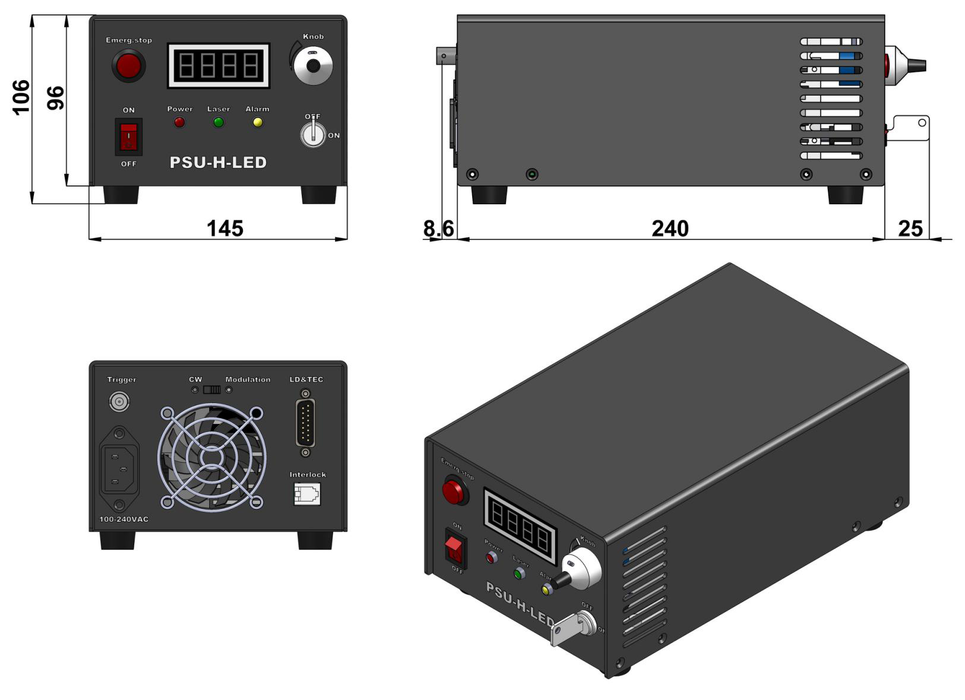

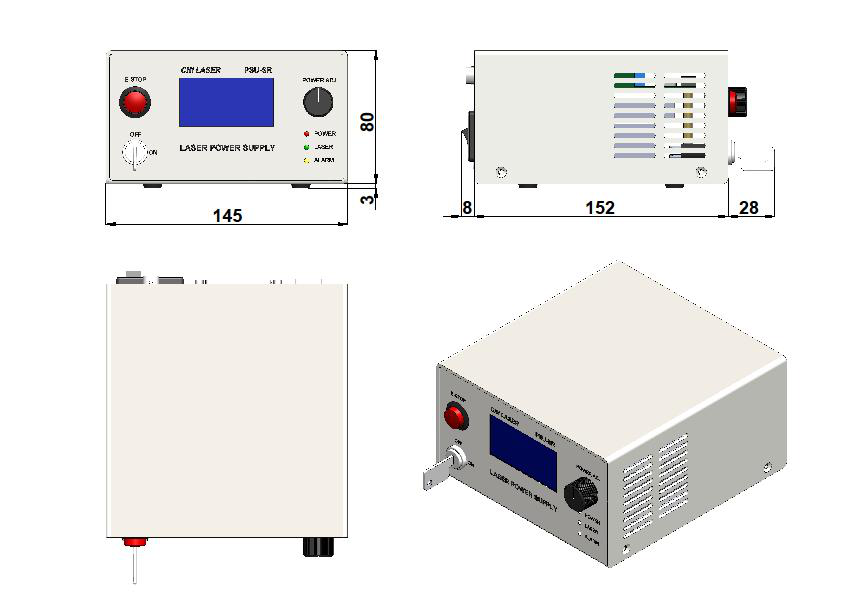

| Power Supply (100-240VAC) | PSU-H-FDA/PSU-H-LED/PSU-SR |
| Expected Lifetime (hours) | >10000 |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # MGL-FN-522-SM
Please request a quotation for a real price and lead time.
