MGL-FN-540 540 nm LD Pumped All-Solid-State Green Laser
$1,000,000.00
Description: All solid-state CW mode laser is made features of ultra compact, easy operating, high power and stability.
Applications: flow cytometry, spectrum analysis, microscopy, semiconductor inspection, cell sorting, optical instrument, physics experiment
Model #: MGL-FN-540
| Model | MGL-FN-540 |
| Wavelength (nm) | 540±1 |
| Operating Mode | CW |
| Output Power (mW)¹ | 1-200 / 200-500 |
| Power Stability (rms, 4 hours ±3°C) | <3%, <2%, <1% |
| Transverse Mode | TEM00 |
| M² | <1.2, <1.1 / <1.5 |
| Beam Diameter at the Aperture (1/e², mm) | <1.0 / <1.5 |
| Beam Divergence, Full Angle (mrad) | <1.5 |
| Polarization Ratio | >100:1, Vertical (Horizontal optional) |
| Warm-Up Time (minutes) | <5 |
| Pointing Stability (µrad, over 2 hours after warm-up and ±3°C) | <50 |
| Pointing Stability Over Temperature (µrad/°C) | <8 |

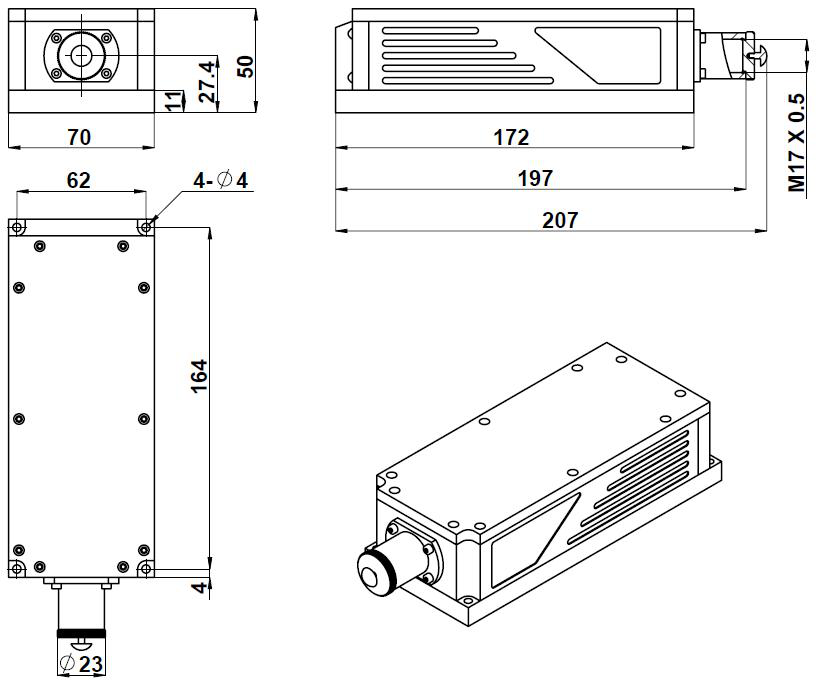

| Beam Height from Base Plate (mm) | 27.4 |
| Operating Temperature (℃) | 10-35 |
| Modulation Option | DC-1kHz, 1kHz-10kHz, 10kHz-30kHz optional; TTL and Analog optional |

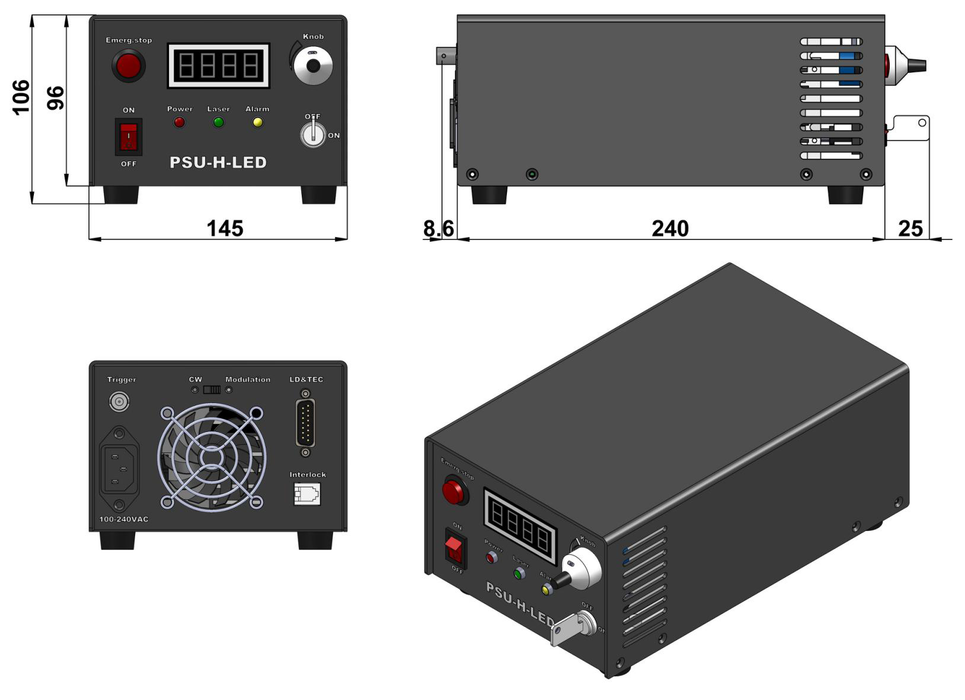

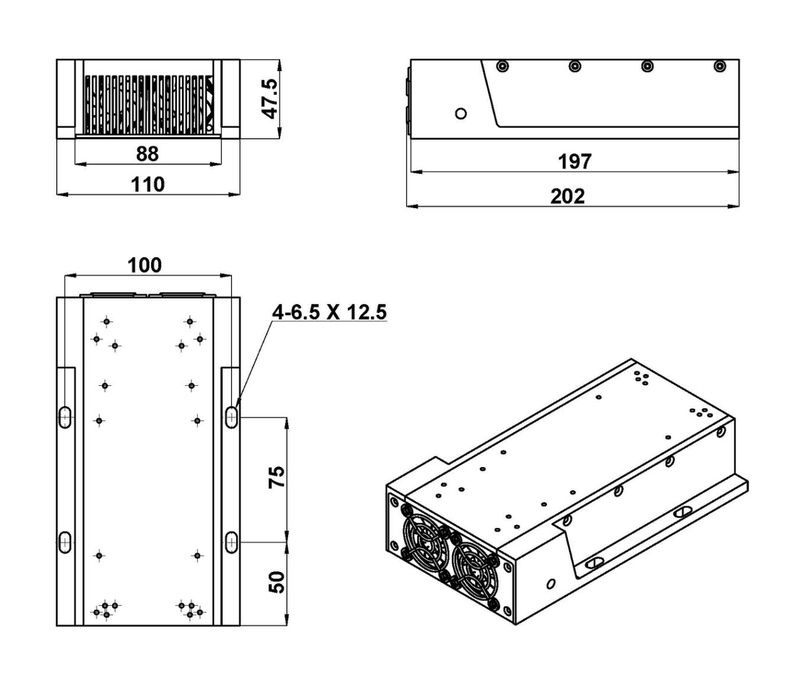

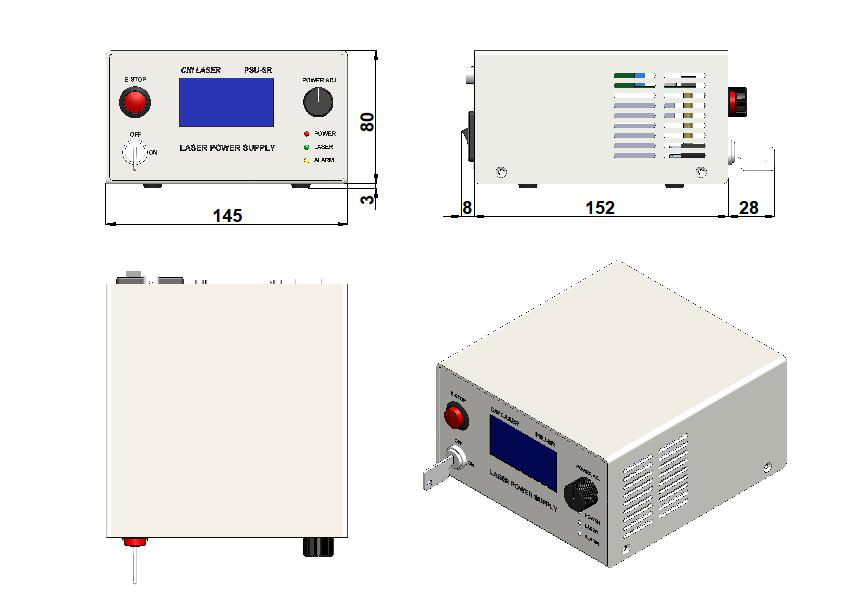

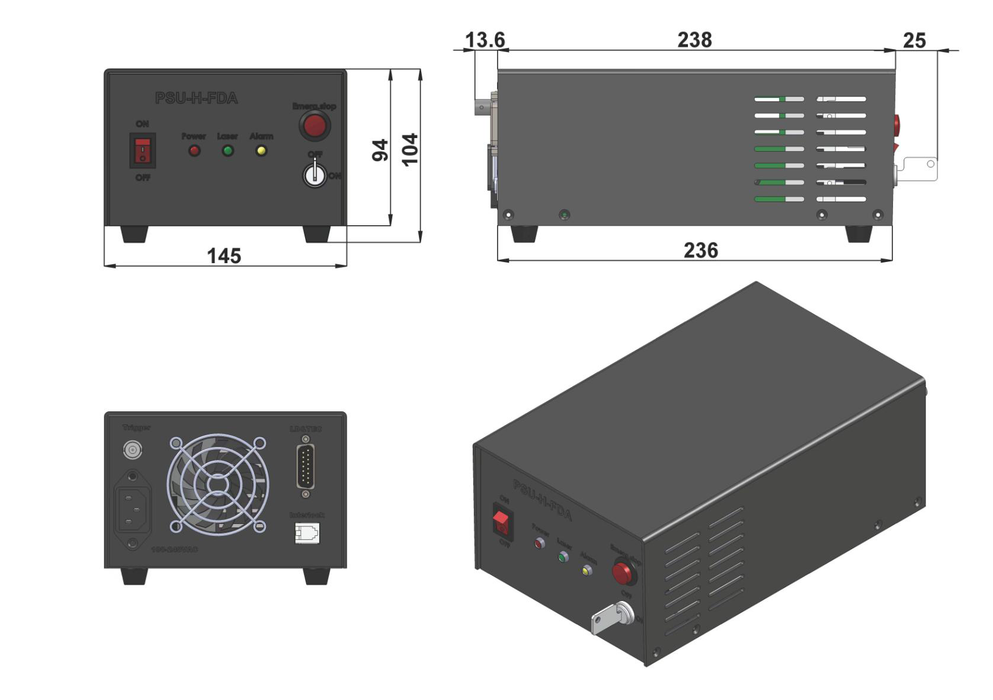

| Power Supply (100-240VAC) | PSU-H-FDA/PSU-H-LED/PSU-SR |
| Expected Lifetime (hours) | >10000 |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # MGL-FN-540
Please request a quotation for a real price and lead time.
