MGL-S-589 589 nm LD Pumped All-Solid-State Yellow Laser
$1,000,000.00
Description: All solid state laser at 589nm is made features of ultra compact, small size, wide operating temperature, good sealing, long lifetime, cost-effectiveness and easy operating, working under the pressure of 0.02kPa, which is used in scientific experiment, optical sensor, measurement, instrument, communication, spectrum analysis, etc.
Applications: scientific experiment, optical sensor, measurement, instrument, communication, spectrum analysis
Model #: MGL-S-589
| Model | MGL-S-589-A (Harsh condition) / MGL-S-589-B (Normal condition) |
| Central Wavelength (nm) | 589±1 |
| Operating Mode | CW |
| Output Power (mW) | >1, 5, 10, 20, …, 50 |
| Power Stability (rms, over 4 hours) | <1%, <2%, <3%, <5% |
| Transverse Mode | TEM00 |
| M² Factor | <1.5 |
| Beam Diameter at Aperture (1/e², mm) | 0.7±0.05 |
| Beam Divergence, Full Angle (mrad) | <1.5 |
| Polarization Ratio | >100:1, Horizontal±5 degree (Vertical Optional) |
| Pointing Stability After Warm-up (mrad) | <0.05 |
| Pointing Stability Over Temp. (µrad/°C) | <8 |
| Warm-up Time (minutes) | <5 |
| Beam Height from Base Plate (mm) | 19 |
| Power Consumption (W) | <30 |
| Shock Tolerance (6ms) | 7g laterally, 15g vertically |
| IP Rating | IP67 (A) / IP65 (B) |

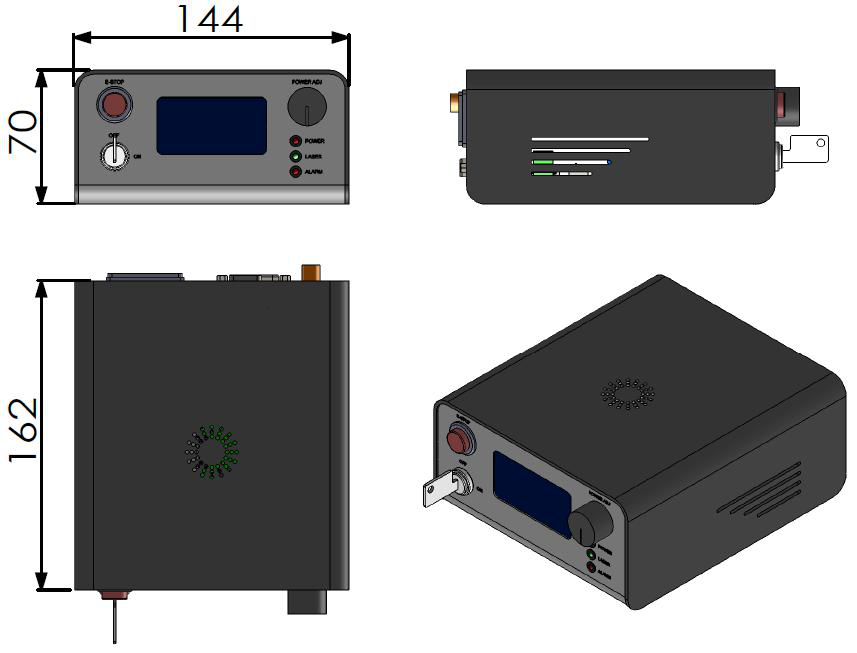

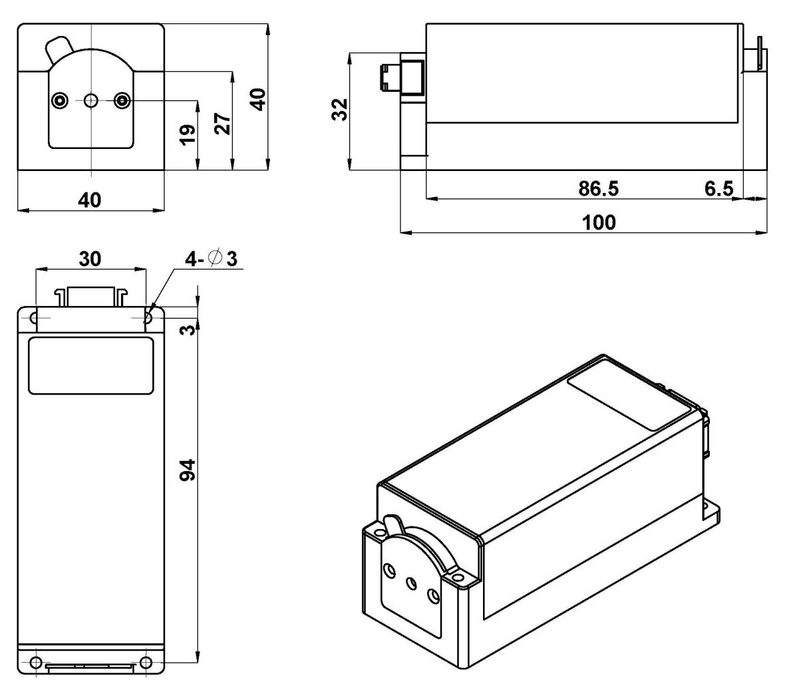

| Power Supply (90-264VAC) | PSU-H-FDA / PSU-A-D / PSU-A-F / PSU-III-OEM-97 (5VDC) |
| Operating Temperature (℃) | 0-60 (A) / 10-35 (B) |
| Max. Heat Dissipation of Head (W) | 10W@50℃ (A) / 4W@25℃ (B) |
| Modulation | TTL on/off, 1Hz-1kHz, 1kHz-10kHz, 10kHz-30kHz; and Analog modulation optional |
| Expected Lifetime (hours) | 10000 |
| Warranty | 1 year |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # MGL-S-589
