MGL-U-589 589 nm LD Pumped All-Solid-State Yellow Laser
$1,000,000.00
Description: All solid state laser at 589nm is made features of ultra compact, long lifetime, high stability and reliability, which is used in scientific experiment, medical measurement, instrument, spectrum analysis, etc.
Applications: scientific experiment, medical measurement, instrument, spectrum analysis
Model #: MGL-U-589
| Central Wavelength (nm) | 589±1 |
| Operating Mode | CW |
| Output Power (mW) | >50, … , 100 / >100, … , 200 |
| Power Stability (rms, over 4 hours) | <1%, <2%, <3% / <2%, <3%, <5% |
| Transverse Mode | TEM00 |
| M² Factor | <1.2 |
| Beam Diameter at Aperture (1/e², mm) | <1.0 |
| Beam Divergence (mrad) | <1.5 |
| Polarization Ratio | >100:1, Horizontal±5 degree |
| Warm-up Time (minutes) | <10 |
| Pointing Stability After Warm-up (mrad) | <0.05 |
| Beam Height from Base Plate (mm) | 27.4 |
| Laser Head Consumption (W) | 15 (typical), <25 (40℃) |
| Max. Laser Head Base Plate Temp (°C) | 50 |
| Operating Temperature (°C) | 10-40 |

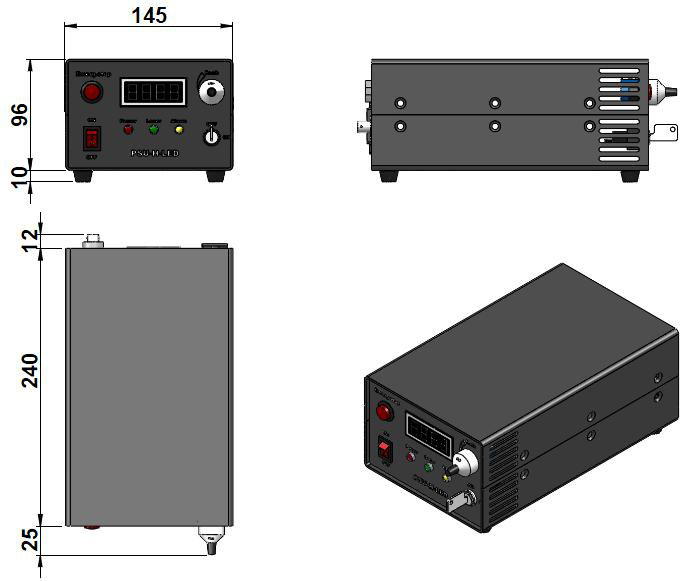

| Driver (12VDC) | PSU-H-LED / PSU-H-FDA / PSU-SR |
| Modulation Option | TTL on/off, 1Hz-1kHz, 1kHz-10kHz, 10kHz-30kHz; and Analog modulation optional |
| Expected Lifetime (hours) | 10000 |
| Warranty | 1 year |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # MGL-U-589
Please request a quotation for a real price and lead time.
