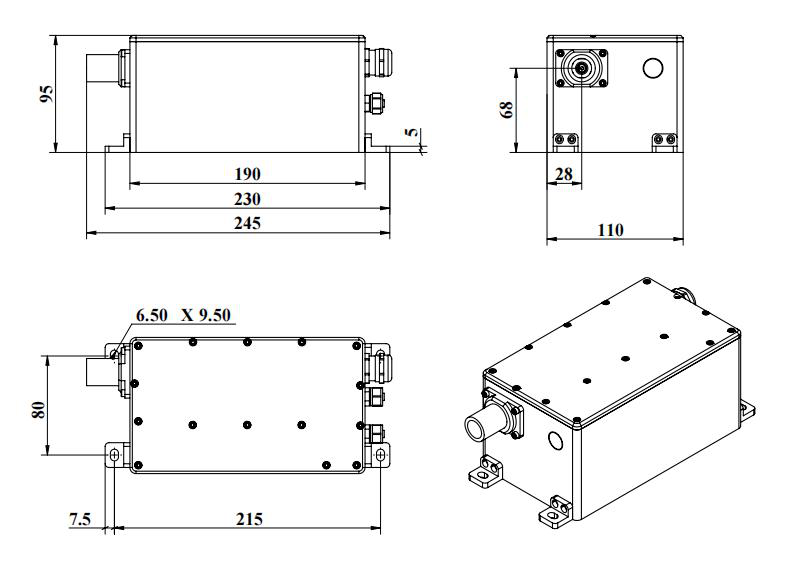

MGL-V-589 589 nm LD Pumped All-Solid-State Yellow Laser
$1,000,000.00
Description: All solid state laser at 589nm is made features of ultra compact, long lifetime and easy operating, which is used in scientific experiment, optical sensor, measurement, instrument, communication, spectrum analysis, etc.
Applications: scientific experiment, optical sensor, measurement, instrument, communication, spectrum analysis
Model #: MGL-V-589
| Wavelength (nm) | 589±2 |
| Operating Mode | CW |
| Output Power (mW) | 500-1500 |
| Power Stability (rms, 4 hours ±3°C) | <3%, <2%, (<1% optional) |
| Transverse Mode | TEM00 |
| M² | <1.2 |
| Beam Divergence, Full Angle (mrad) | <1 |
| Beam Diameter at Aperture (1/e², mm) | ~2 |
| Warm-up Time (minutes) | <10 |
| Pointing Stability (µrad, over 2 hours after warm-up and ±3°C) | <50 |
| Pointing Stability Over Temperature (µrad/°C) | <20 |
| Polarization Ratio | >50:1 (100:1 optional), Horizontal (Vertical optional) |
| Beam Height from Base Plate (mm) | 68 |

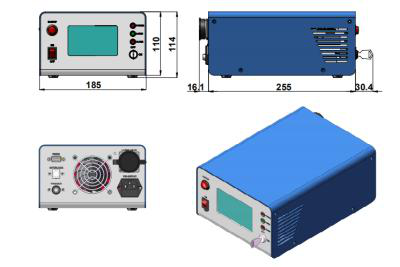

| Cooling Method | Water Cooled |
| Operating Temperature (°C) | 10-35 |

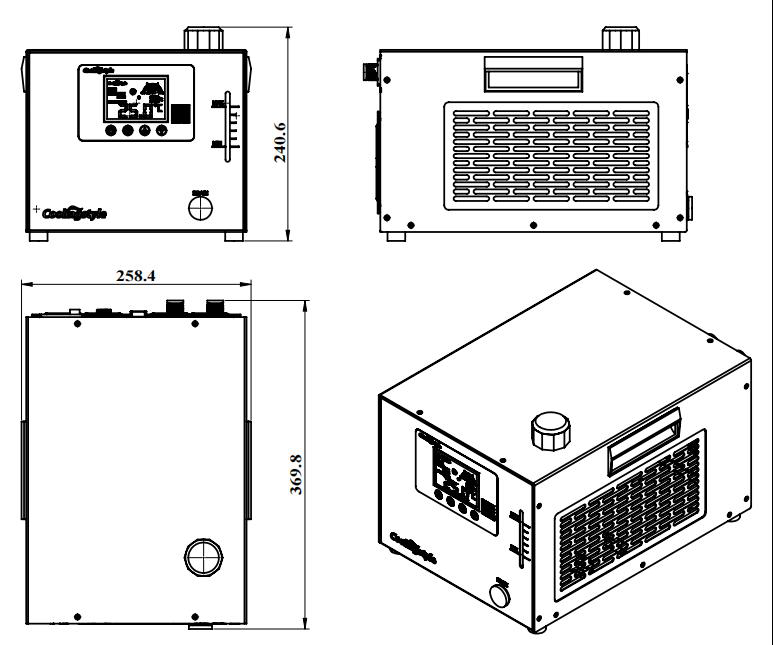

| Power Supply (100-240VAC) | PSU-H-FDA / PSU-H-LED / PSU-H-OEM |
| Modulation Option | DC-1kHz, 1kHz-10kHz, 10kHz-30kHz optional; TTL and Analog optional |
| Expected Lifetime (hours) | >10000 |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # MGL-V-589
Please request a quotation for a real price and lead time.
