MGL-W-577A 577 nm LD Pumped All-Solid-State Yellow Laser
$1,000,000.00
Description: All solid state 577nm yellow laser is made features of ultra compact, long lifetime and easy operating.
Applications: collimation, laser medical treatment, scientific experiment, optical instrument
Model #: MGL-W-577A
| Model | MGL-W-577A |
| Model | MGL-W-577A / MGL-W-577A-II |
| Wavelength (nm) | 577±2 |
| Operating Mode | CW |
| Output Power (W)¹ | 1.2-3 / 3-5 |
| Power Stability (rms, 4 hours ±3°C) | <3%, <2%, (<1% optional) |
| Transverse Mode | Near TEM00 |
| Beam Divergence, Full Angle (mrad) | <1.5 |
| Beam Diameter at the Aperture (1/e², mm) | ~5.0 |
| Warm-Up Time (minutes) | <10 |
| Pointing Stability (µrad, over 2 hours after warm-up and ±3°C) | <50 |
| Pointing Stability Over Temperature (µrad/°C) | <20 |
| Polarization Ratio | >50:1 (100:1 optional), Horizontal (Vertical optional) |
| Beam Height from Base Plate (mm) | 80 |
| Operating Temperature (℃) | 10-35 |

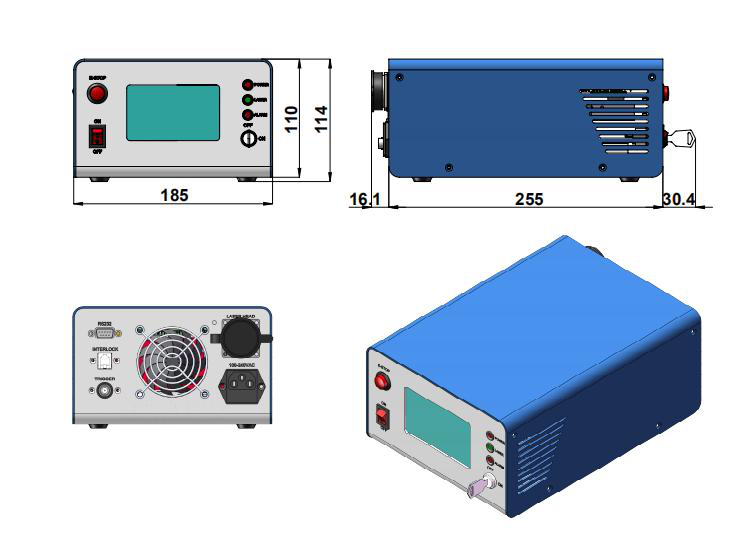

| Power Supply (100-240VAC) | PSU-W-LED / PSU-AOM |
| Modulation Option | DC-1kHz, 1kHz-10kHz, 10kHz-30kHz optional; TTL and Analog optional |
| Expected Lifetime (hours) | >10000 |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # MGL-W-577A
Please request a quotation for a real price and lead time.
