MGL-W-588 588 nm LD Pumped All-Solid-State Yellow Laser
$1,000,000.00
Description: All solid state 588 nm yellow laser is made features of ultra compact, long lifetime and easy operating, which is widely used in collimation, laser medical treatment, scientific experiment, optical instrument, etc.
Applications: collimation, laser medical treatment, scientific experiment, optical instrument
Model #: MGL-W-588
| Wavelength (nm) | 588±2 |
| Operating Mode | CW |
| Output Power (mW) | >800, 850, 900, … , 4500 |
| Power Stability (rms, over 4 hours) | <3%, <5% |
| Transverse Mode | Near TEM00 |
| M² Factor | 3~6 |
| Beam Divergence, Full Angle (mrad) | <2.0 |
| Beam Diameter at Aperture (1/e², mm) | ~4.0 |
| Warm-up Time (minutes) | <10 |
| Polarization Ratio | >100:1 |
| Beam Height from Base Plate (mm) | 93.5 |
| Operating Temperature (℃) | 10~35 |

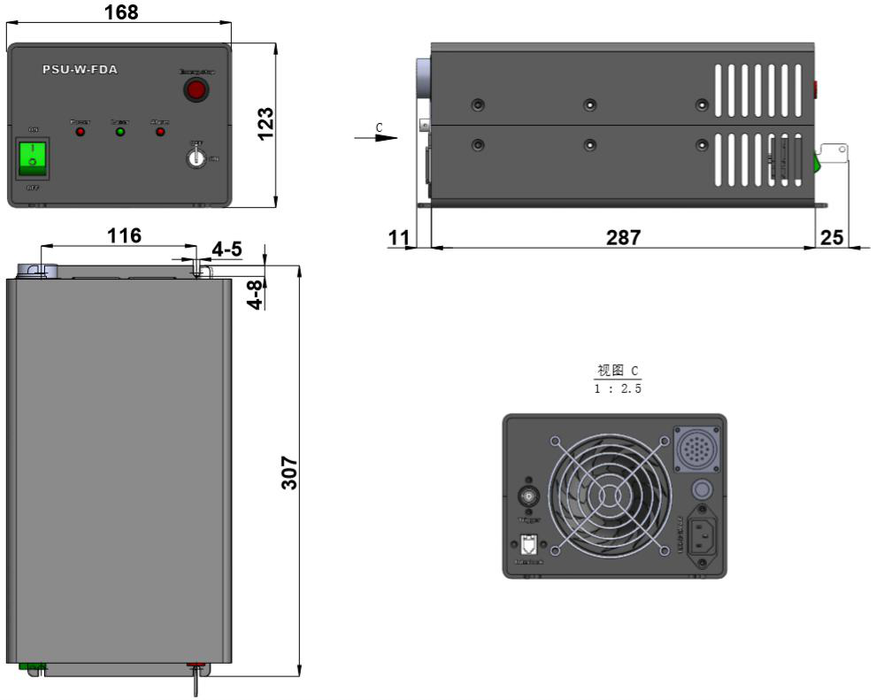

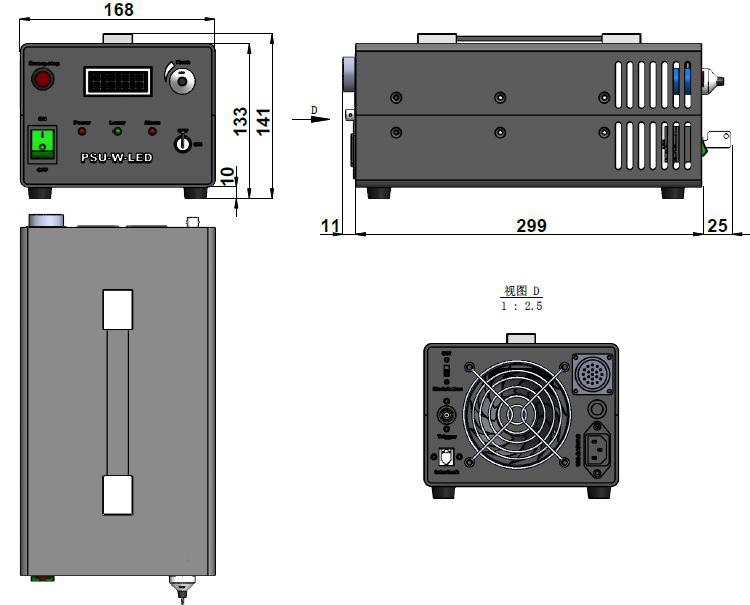

| Power Supply (90-264VAC) | PSU-W-LED / PSU-W-FDA |
| TTL / Analog Modulation | TTL or Analog with 1Hz-1kHz, 1kHz-10kHz, 10kHz-30kHz optional |
| Expected Lifetime (hours) | 10000 |
| Warranty Period | 1 year |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # MGL-W-588
Please request a quotation for a real price and lead time.
