MGL-W-589A 589 nm LD Pumped All-Solid-State Yellow Laser
$1,000,000.00
Description: All solid state 589 nm yellow laser is made features of ultra compact, long lifetime and easy operating, which is widely used in collimation, laser medical treatment, scientific experiment, optical instrument, etc.
Applications: collimation, laser medical treatment, scientific experiment, optical instrument
Model #: MGL-W-589A
| Model | MGL-W-589A / MGL-W-589A-II |
| Wavelength (nm) | 589±2 |
| Operating Mode | CW |
| Output Power (mW) | 1500-4500 / 4500-7000 |
| Power Stability (rms, 4 hours ±3°C) | <3%, <2%, (<1% optional) |
| Transverse Mode | Near TEM00 |
| Beam Divergence, Full Angle (mrad) | <2.0 |
| Beam Diameter at Aperture (1/e², mm) | ~4.0 |
| Pointing Stability (µrad, over 2 hours after warm-up and ±3°C) | <50 |
| Pointing Stability Over Temperature (µrad/°C) | <20 |
| Warm-up Time (minutes) | <10 |
| Polarization Ratio | >50:1 (100:1 Optional), Horizontal (Vertical Optional) |
| Beam Height from Base Plate (mm) | 80 |
| Operating Temperature (℃) | 10-35 |

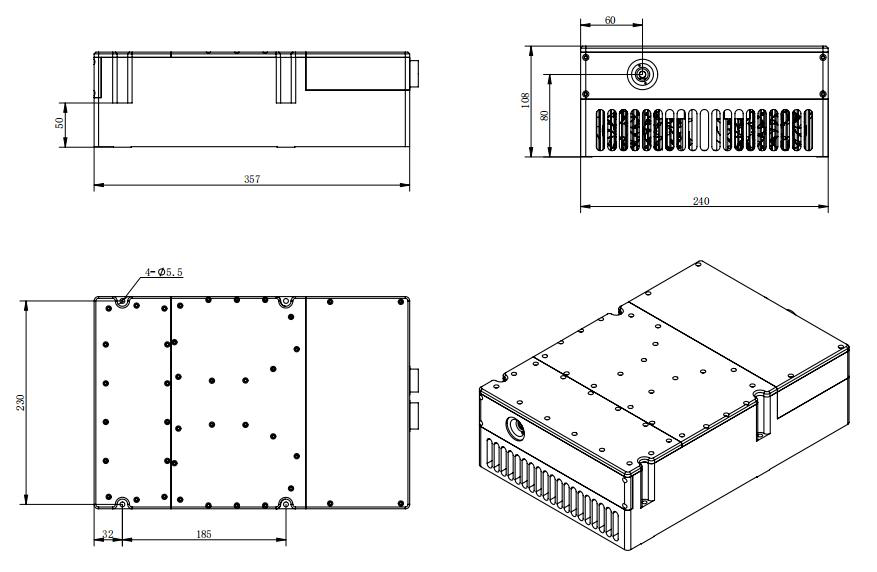

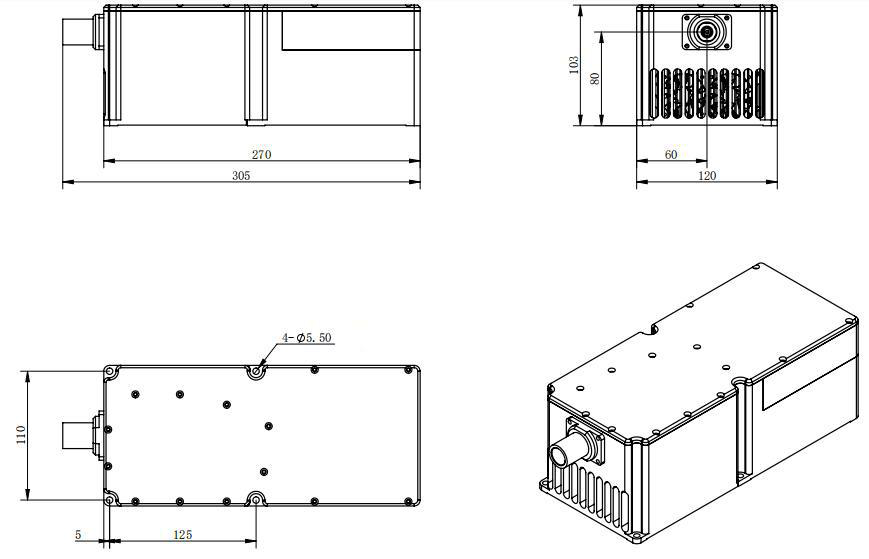

| Power Supply (100-240VAC) | PSU-W-LED / PSU-AOM |
| Modulation Option | DC-1kHz, 1kHz-10kHz, 10kHz-30kHz optional; TTL and Analog optional |
| Expected Lifetime (hours) | >10000 |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # MGL-W-589A
Please request a quotation for a real price and lead time.
