MIL-N-1645 1645 nm LD Pumped All-Solid-State Infrared Laser
$1,000,000.00
Description: All-solid-state 1645 nm infrared laser in the eye-safe spectral range featuring good beam quality.
Applications: long-distance telemetry and ranging, laser radars, and designation, etc.
Model #: MIL-N-1645
| Wavelength (nm) | 1645±1 |
| Operating Mode | CW |
| Output Power (mW) | 1-1000 |
| Power Stability (rms, 4 hours ± 3°C) | <5%, <3% |
| Transverse Mode | Near TEM00 |
| Beam Divergence, Full Angle (mrad) | <3 |
| Beam Diameter at the Aperture (1/e2, mm) | <3 |

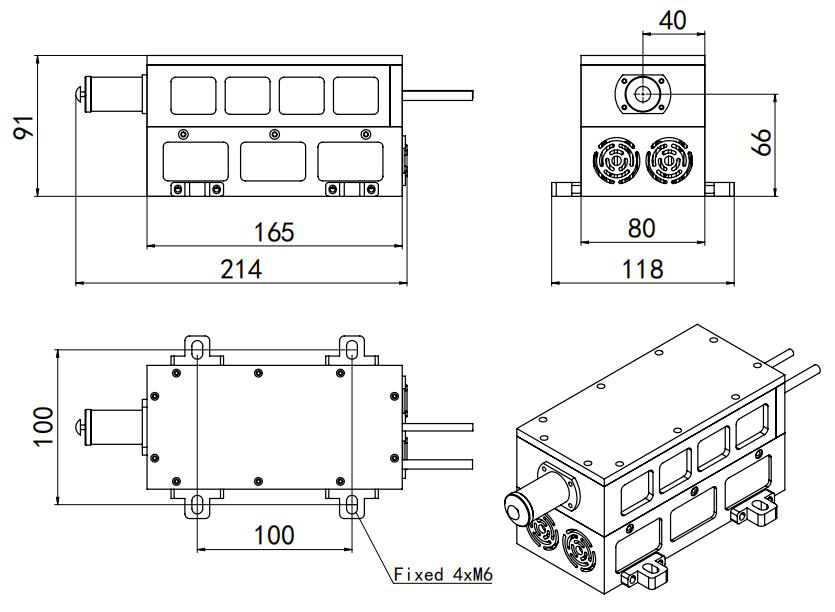

| Beam Height from Base Plate (mm) | 66 |
| Warm-up Time (minutes) | <10 |
| Cooled Method | Air cooled |
| Operating Temperature (°C) | 15-35 |
| Power Supply (100-240 VAC) | RAD1PS |
| Expected Lifetime (hours) | >10000 |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # MIL-N-1645
Please request a quotation for a real price and lead time.
