MIL-V-3000 3000 nm CW Mid-Infrared Laser
$1,000,000.00
Description: LD pumped all-solid-state mid-infrared laser at 3000 nm providing CW output power of up to 400 mW.
Applications: remote sensing, communication, spectrum analysis, etc.
Model #: MIL-V-3000
| Wavelength (nm) | 3000±5 |
| Operating Mode | CW |
| Output Power (mW) | 1-400 |
| Power Stability (rms, 4 hours ± 3°C) | <3%, <2% |
| Beam Divergence, Full Angle (mrad) | <5 |
| Beam Diameter at the Aperture (1/e2, mm) | <6 |

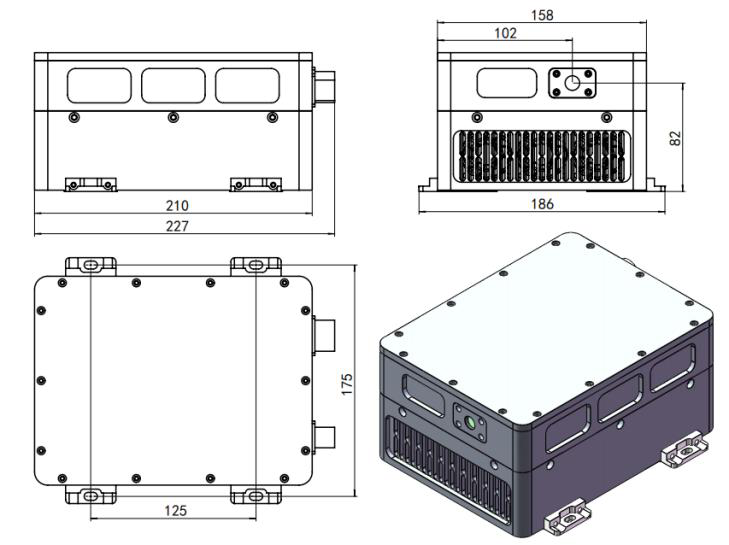

| Beam Height from Base Plate (mm) | 82 |
| Warm-up Time (minutes) | <10 |
| Cooled Method | Air Cooled |
| Operating Temperature (°C) | 15-35 |
| Power Supply (100-240 VAC) | RAD1PS |
| Expected Lifetime (hours) | >10000 |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # MIL-V-3000
Please request a quotation for a real price and lead time.
