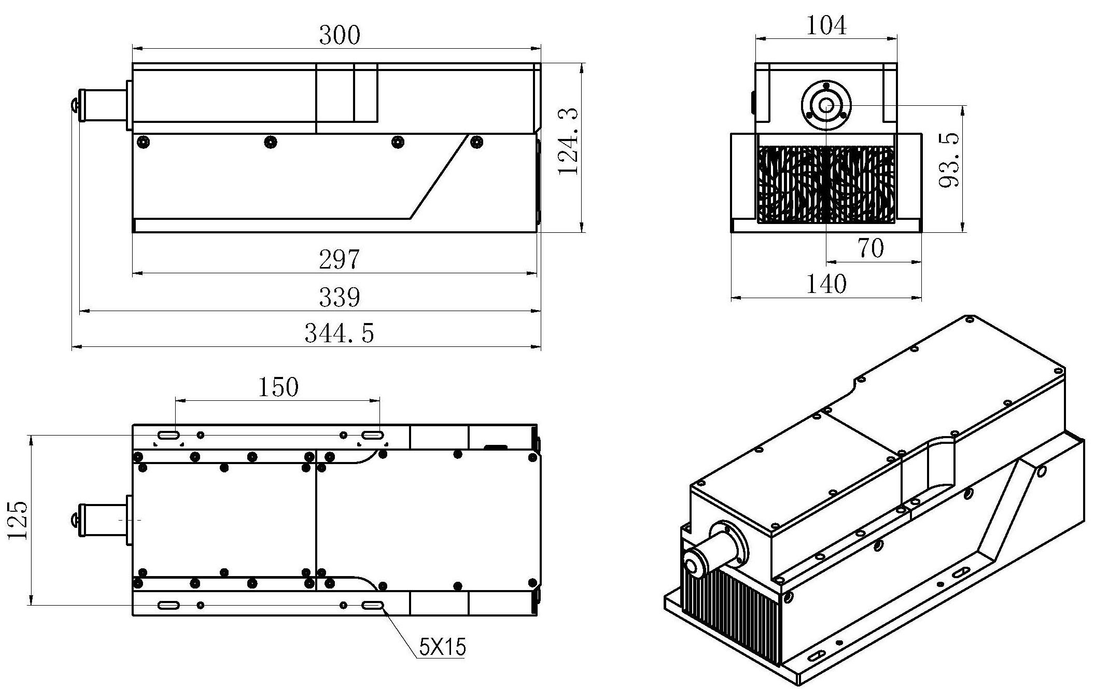

MIL-W-1105 1105 nm LD Pumped All-Solid-State Infrared Laser
$1,000,000.00
Description: All solid state 1105 nm infrared laser with high power, good beam quality and easy operation.
Applications: material processing, scientific experiment, measurement, optical instrument, optical sensor, communication, spectrum analysis, etc.
Model #: MIL-W-1105
| Wavelength (nm) | 1105±2 |
| Operating Mode | CW |
| Output Power (mW) | 500-4000 |
| Power Stability (rms, 4 hours ± 3°C) | <5%, <3% |
| Beam Divergence, Full Angle (mrad) | <4 |
| Beam Diameter at the Aperture (1/e2, mm) | <3 |
| Beam Height from Base Plate (mm) | 93.5 |
| Warm-up Time (minutes) | <10 |
| Cooled Method | Air cooled |
| Operating Temperature (℃) | 15-35 |
| Power Supply (100-240 VAC) | PSU-W-FDA |
| Expected Lifetime (hours) | >10000 |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # MIL-W-1105
Please request a quotation for a real price and lead time.
