MIL-W-2600-4480 2600-4480 nm High Stability Mid-Infrared Laser
$1,000,000.00
Description: LD pumped all-solid-state mid-infrared laser covering 2600-4480 nm with CW output power of up to 1000 mW and a wide tuning range. Any wavelength range in the list can be ordered.
Applications: spectroscopy, remote sensing, medical, etc.
Model #: MIL-W-2600-4480
| Wavelength (nm) | 2600-3700 / 3900 / 4000 / 4100 / 4200 / 4300 / 4400 / 4480 |
| Wavelength Deviation (nm) | ±30 |
| Operating Mode | CW |
| Output Power (mW) | 250-1000 |
| Power Stability (rms, 4 hours ± 3°C) | <5%, <3% |
| Beam Divergence, Full Angle (mrad) | <11 |
| Beam Diameter at the Aperture (1/e2, mm) | <11 |

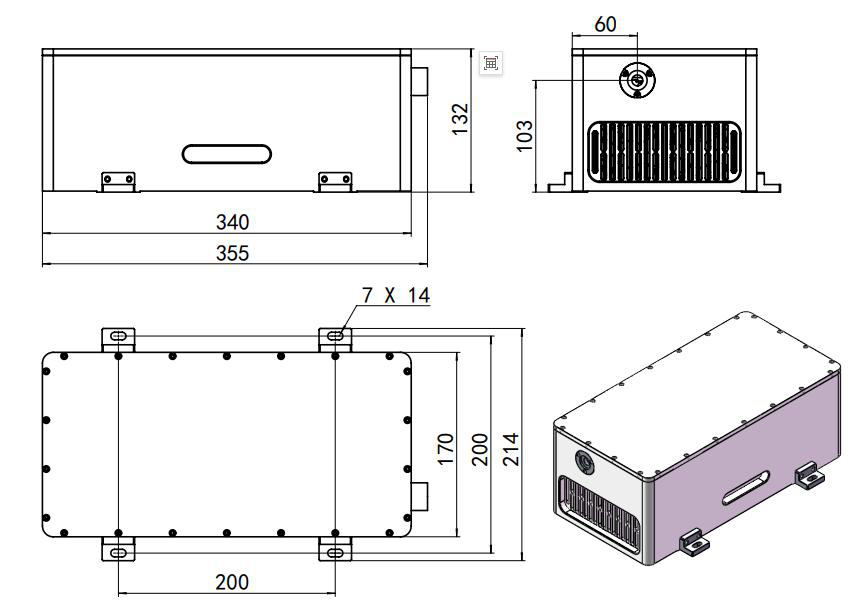

| Beam Height from Base Plate (mm) | 103 |
| Warm-up Time (minutes) | <10 |
| Cooled Method | Air Cooled |
| Operating Temperature (°C) | 15-35 |
| Power Supply (100-240 VAC) | RAD1PS |
| Expected Lifetime (hours) | >10000 |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # MIL-W-2600-4480
Please request a quotation for a real price and lead time.
