MIL-W-946 946 nm Infrared Laser
$1,000,000.00
Description: All solid state infrared laser at 946nm is made features of ultra compact, long lifetime, low cost and easy operating, which is used in scientific experiment, optical instrument, optical sensor, measurement, communication, spectrum analysis, etc.
Applications: scientific experiments, optical instrumentation, optical sensing, measurement, communication, spectral analysis
Model #: MIL-W-946
| Model | MIL-W-946 |
| Wavelength (nm) | 946±1 |
| Operating Mode | CW |
| Output Power (W)¹ | 1.5-5 |
| Power Stability (rms, 4 hours ±3°C) | <5%, <3%, <2% |
| Transverse Mode | Near TEM00 |
| M² | <3.0 |
| Beam Divergence, Full Angle (mrad) | <2.0 |
| Beam Diameter at the Aperture (1/e², mm) | <2.0 |
| Warm-Up Time (minutes) | <10 |
| Polarization Ratio | >50:1 (>100:1 optional), Horizontal (Vertical optional) |

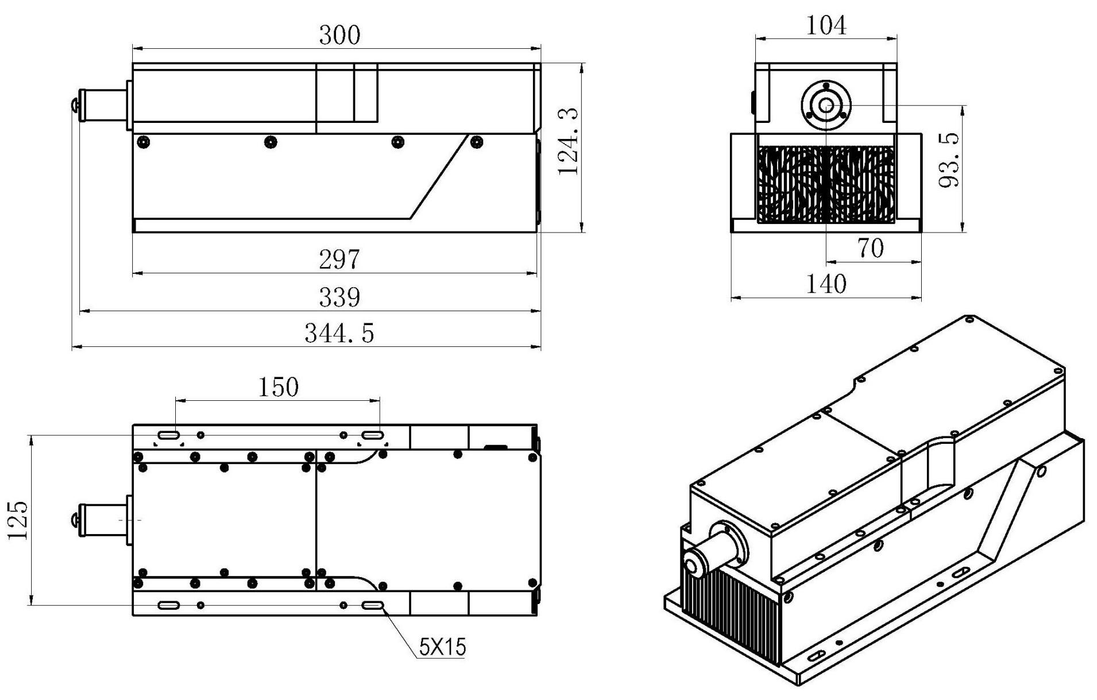

| Beam Height from Base Plate (mm) | 93.5 |
| Operating Temperature (℃) | 1-35 |

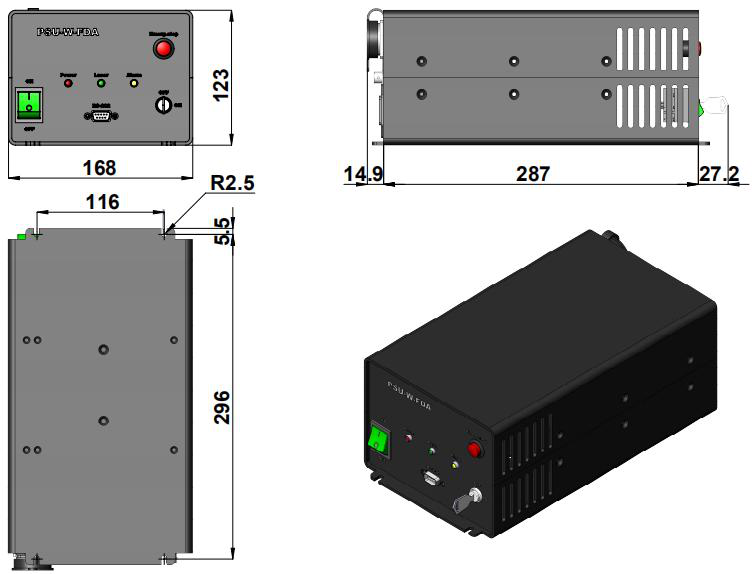

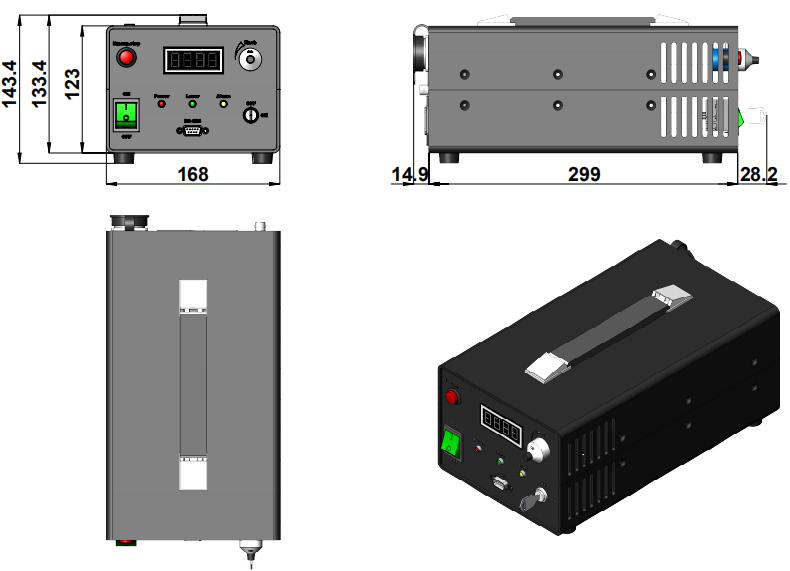

| Power Supply (100-240VAC) | PSU-W-FDA/PSU-W-LED |
| Modulation Option | DC-1kHz, 1kHz-10kHz, 10kHz-30kHz optional; TTL and Analog optional |
| Expected Lifetime (hours) | >10000 |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # MIL-W-946
Please request a quotation for a real price and lead time.
